Promo  BREL's 'International Train'

On September 15th 1986 ten innovative coaches were unveiled by BREL at their Litchurch Lane works in Derby. They were designed as a promotional 'International Train' being an opportunity to showcase the talents of BREL with a view to acquiring orders from BR and from other countries.

They were similar to Mk3 coaches with BT10 bogies but had a slightly different body profile and, for the first time on main line stock in the UK, automatic sliding doors and a maximum speed of 110 mile/h.

However these were not the first coaches to be called 'International'

Photos are courtesy the Derby Evening Telegraph if not otherwise credited

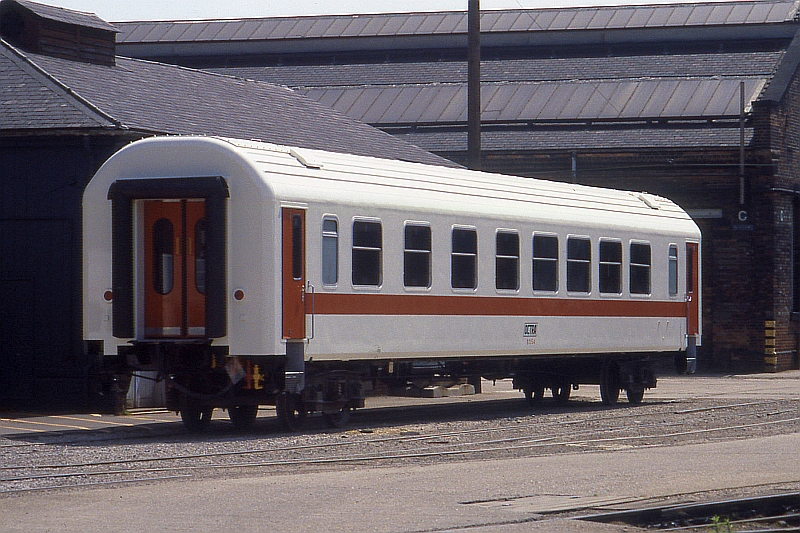

The first International coach is pictured in Derby C&W Works in 1984. This was built for the president of Gabon and is shown here on accommodation bogies

Peter Kazmierczak

Handover - note the placard

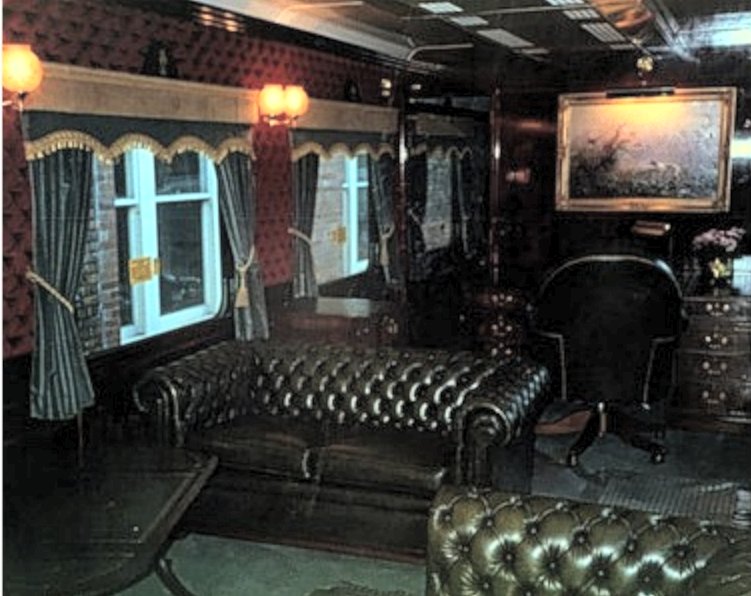

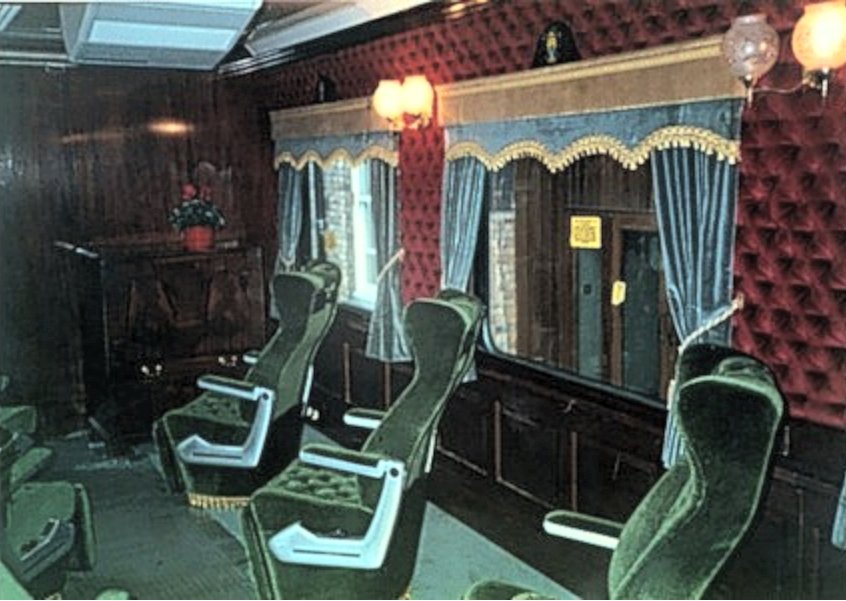

The coach was luxuriously appointed inside

More luxury

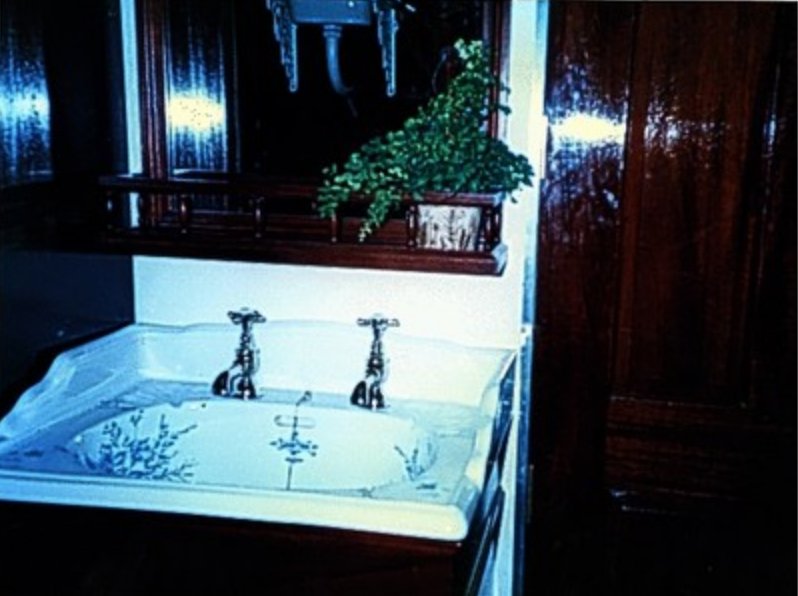

Washbasin

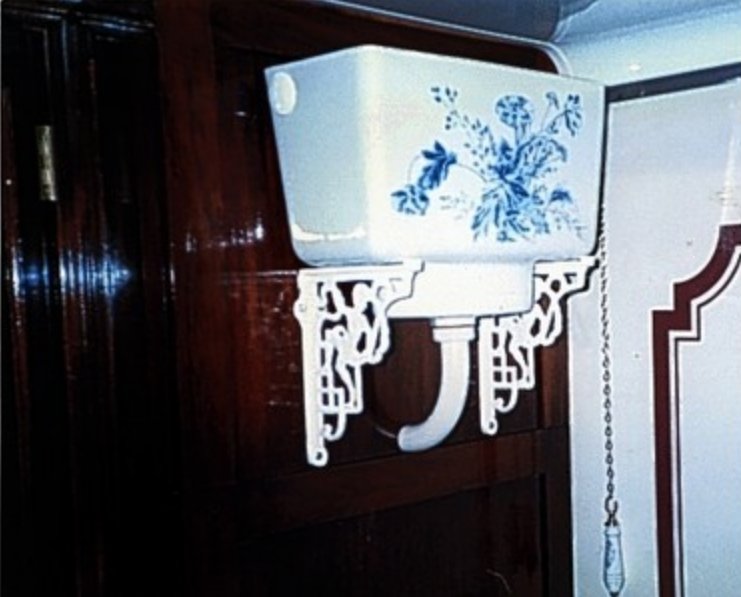

Decorated cistern

There were several options for prospective buyers

Pictures courtesy Andy Barclay

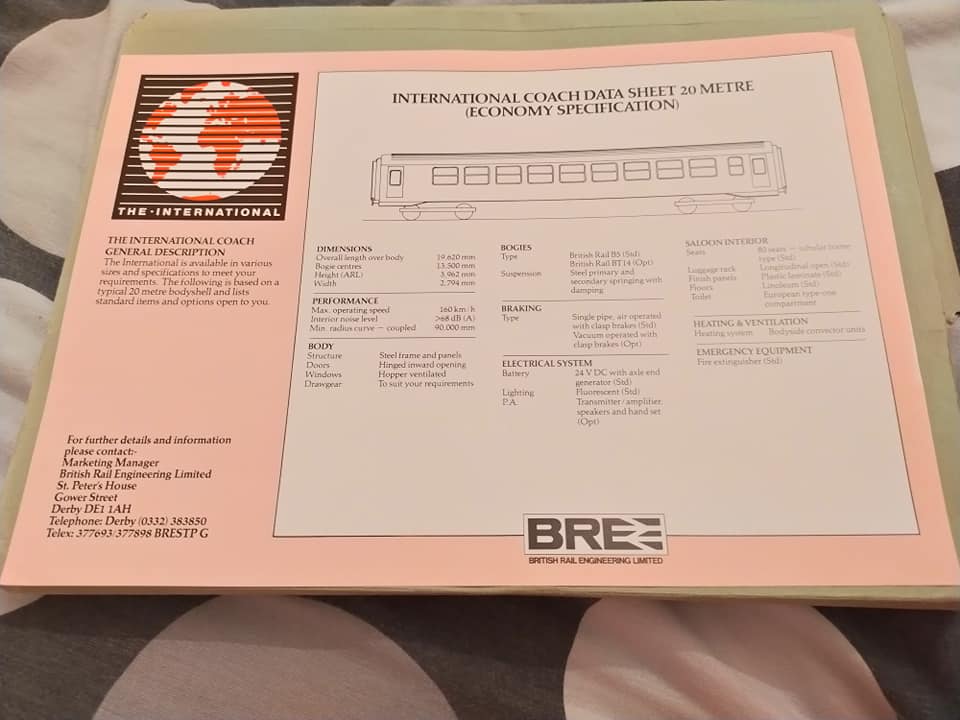

20m long version

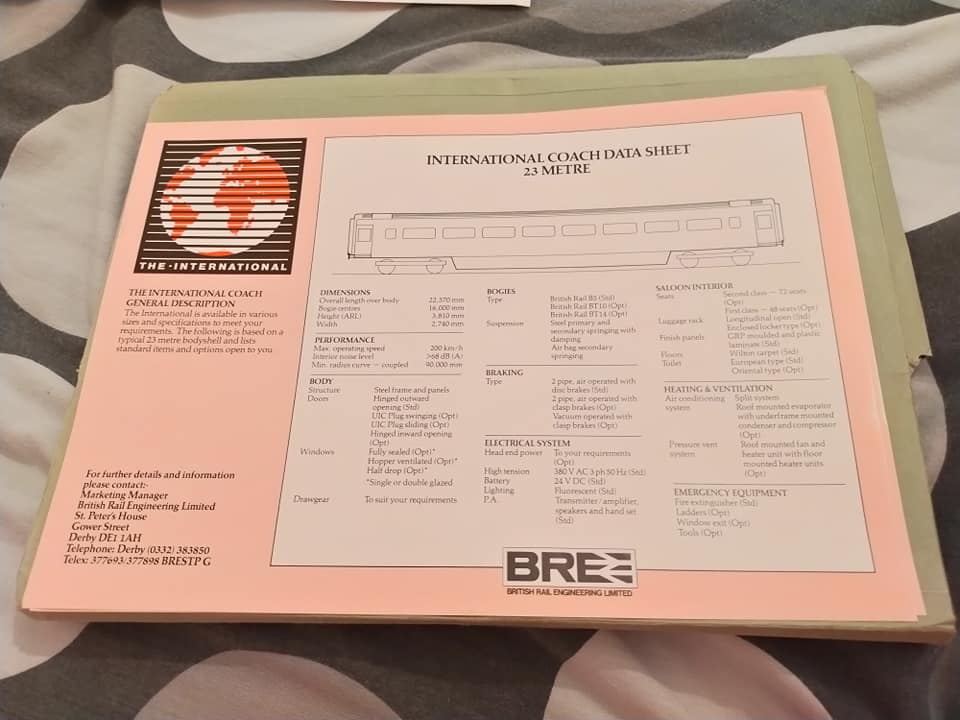

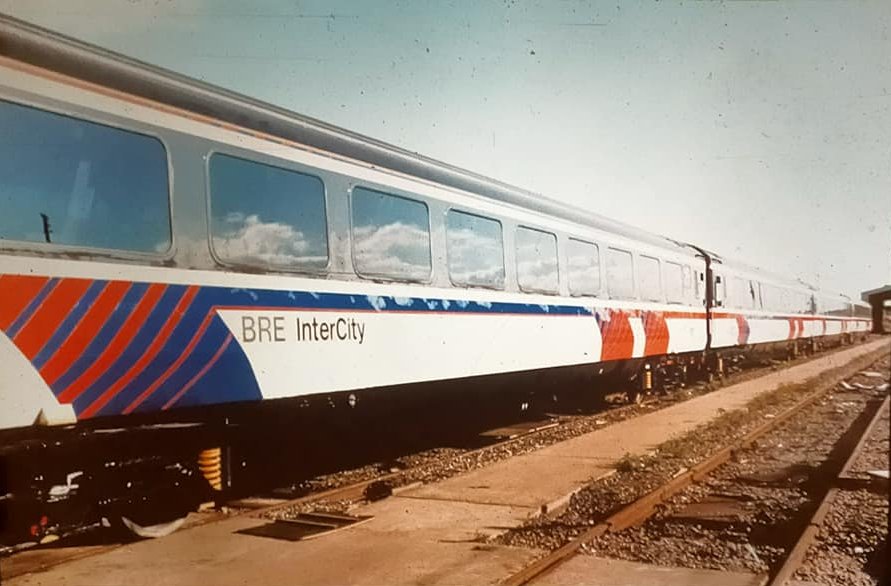

23m long version - this was the length chosen for UK

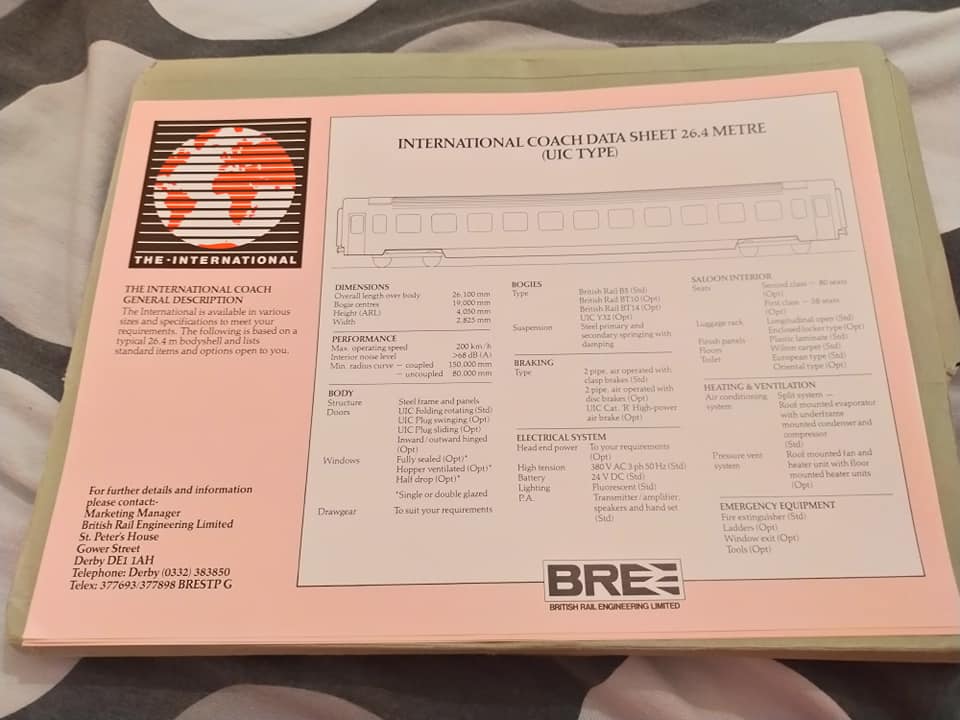

26.4m long version

The BREL International Train rake of 23m coaches was numbered as follows:

99520 (BFK); 99521 and 99522 (FO); 99523 (RUM); 99524; 99525; 99526; 99527; 99528 and 99529 (all TSO) plus the mystery 11th un-liveried coach 99519 - see below.

The interior of the BFK coach featured a double conference compartment with semi-circular bench-type seating amongst other things

The Railway magazine, issue 62, of November 1986 reported on the launch of the train on Wednesday September 17th with a press run from Euston to Manchester and return via Birmingham. I have a video produced by BREL at the time.

Here are some pictures taken on the train and at Manchester Piccadilly after the special run

Click on the picture for a bigger image - photos are courtesy of Henry Law where not otherwise credited

BREL's promotional advert for the train

BREL

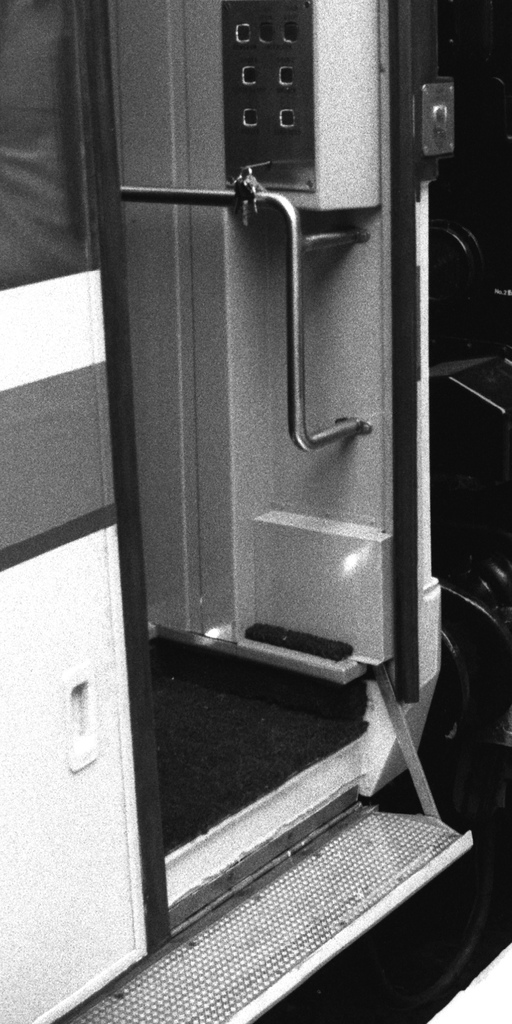

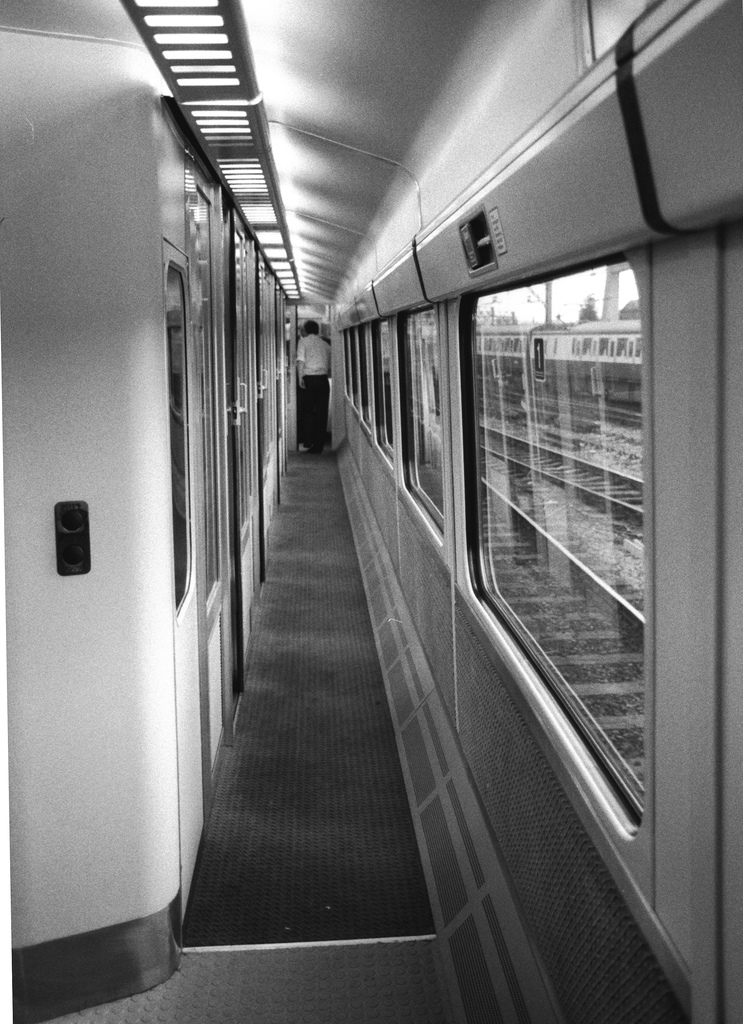

Door The exterior door with folding footstep BFK The corridor of the Brake First Corridor coach (BFK) 99520

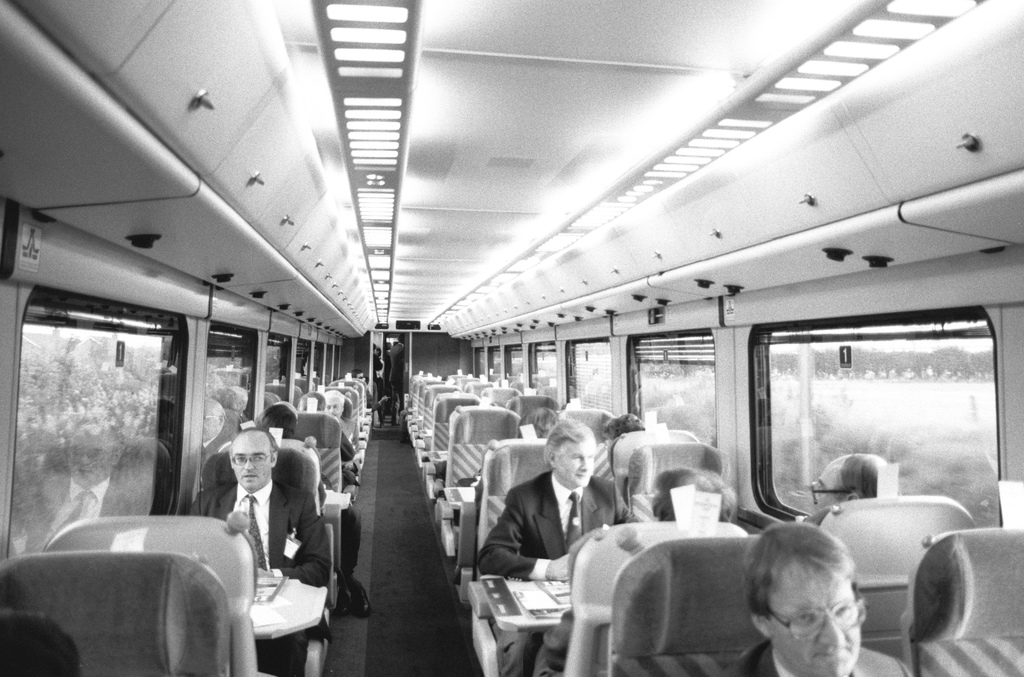

TSO Inside one of the Tourist Second Opens (TSO) TSO

Another shot of a Tourist Second Open (TSO)

FO

 Inside one of the first open coaches (FO)

FO Another view of a First Open

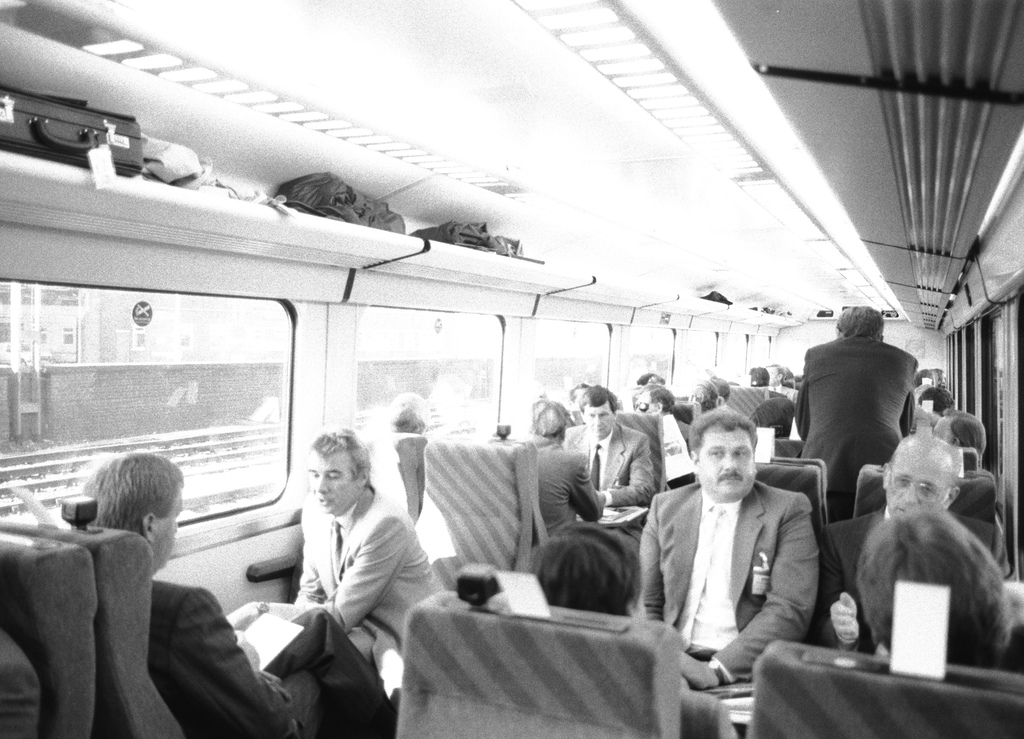

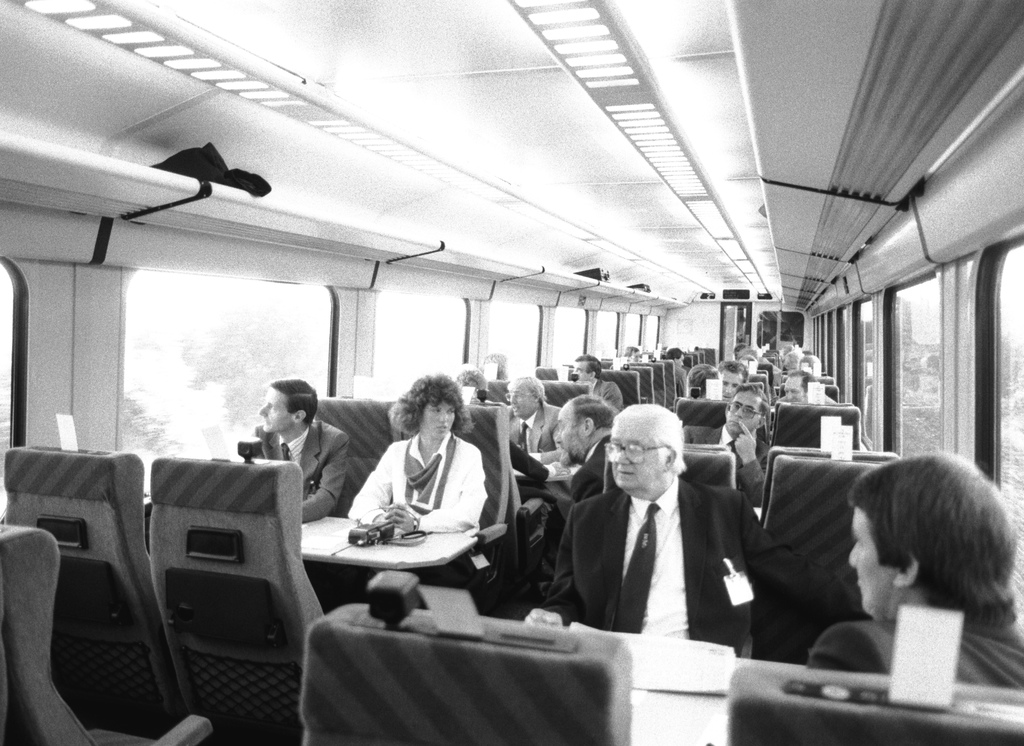

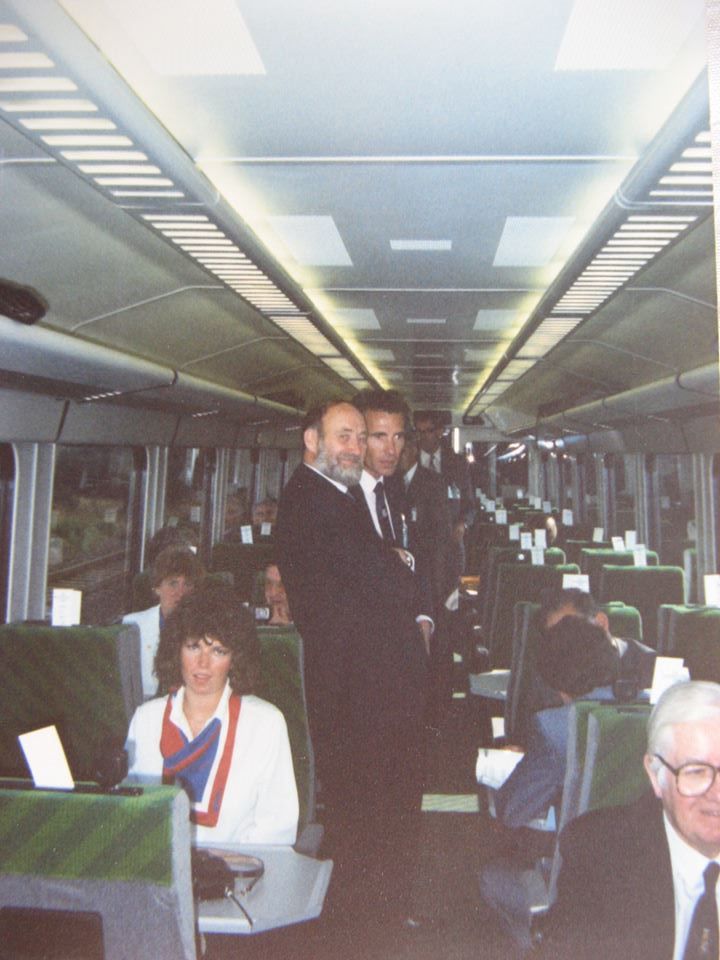

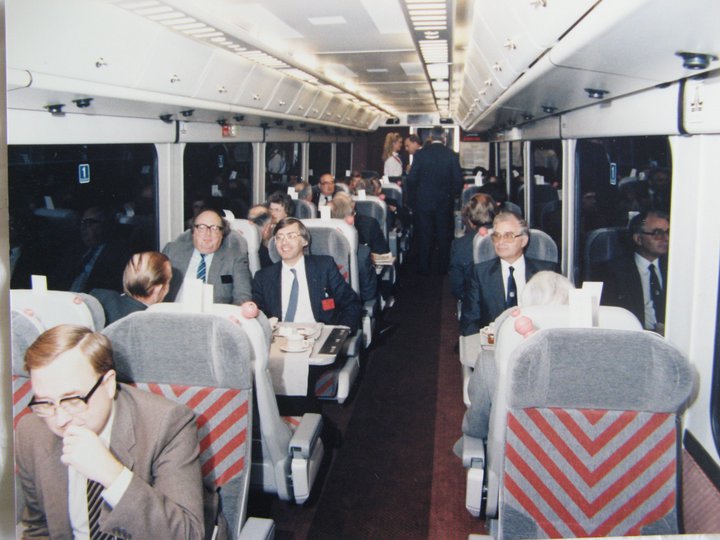

Inside the train

Unknown

Good view How train seating should be

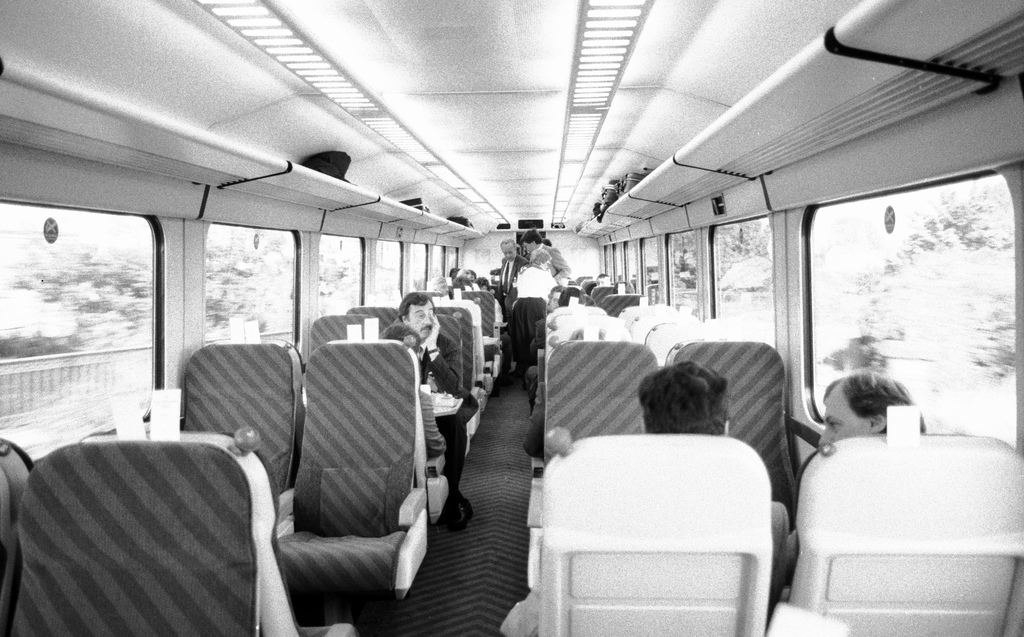

Inside the train

Unknown

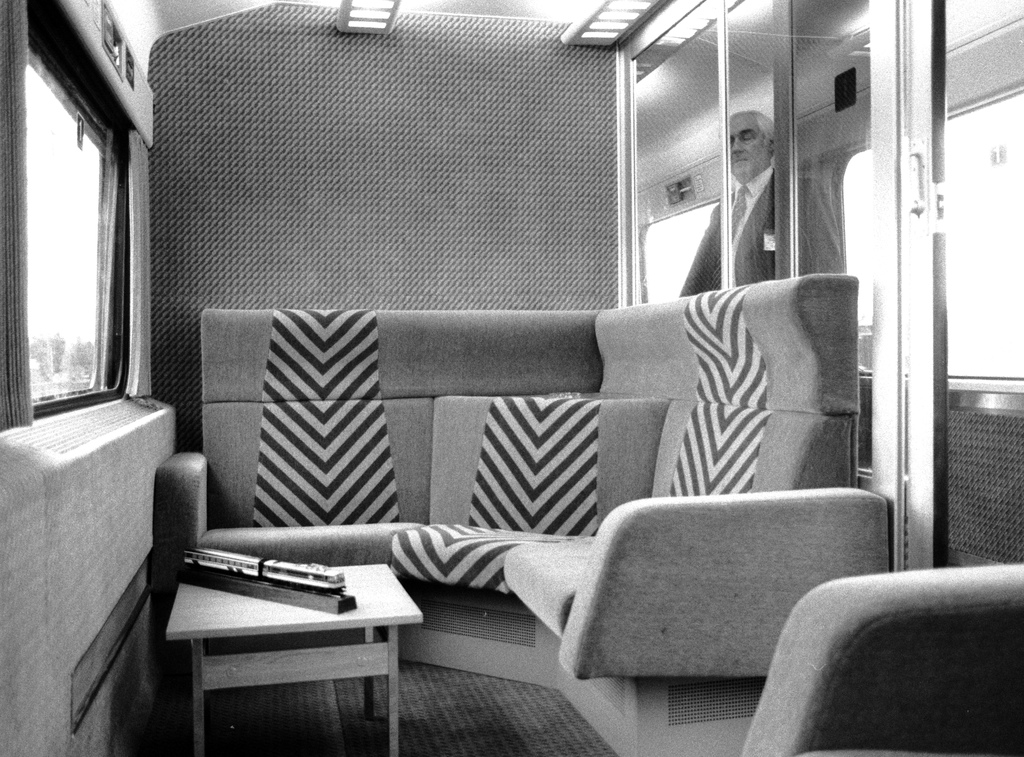

Conference compartment Inside the double conference compartment with the semi-circular bench-type seating where my colleague and I passed the night 'somewhere in France' on the way to Hamburg in 1988
The conference compartment of BFK Coach No:99520 with Sir Bob Reid the then chairman of BR

Unknown

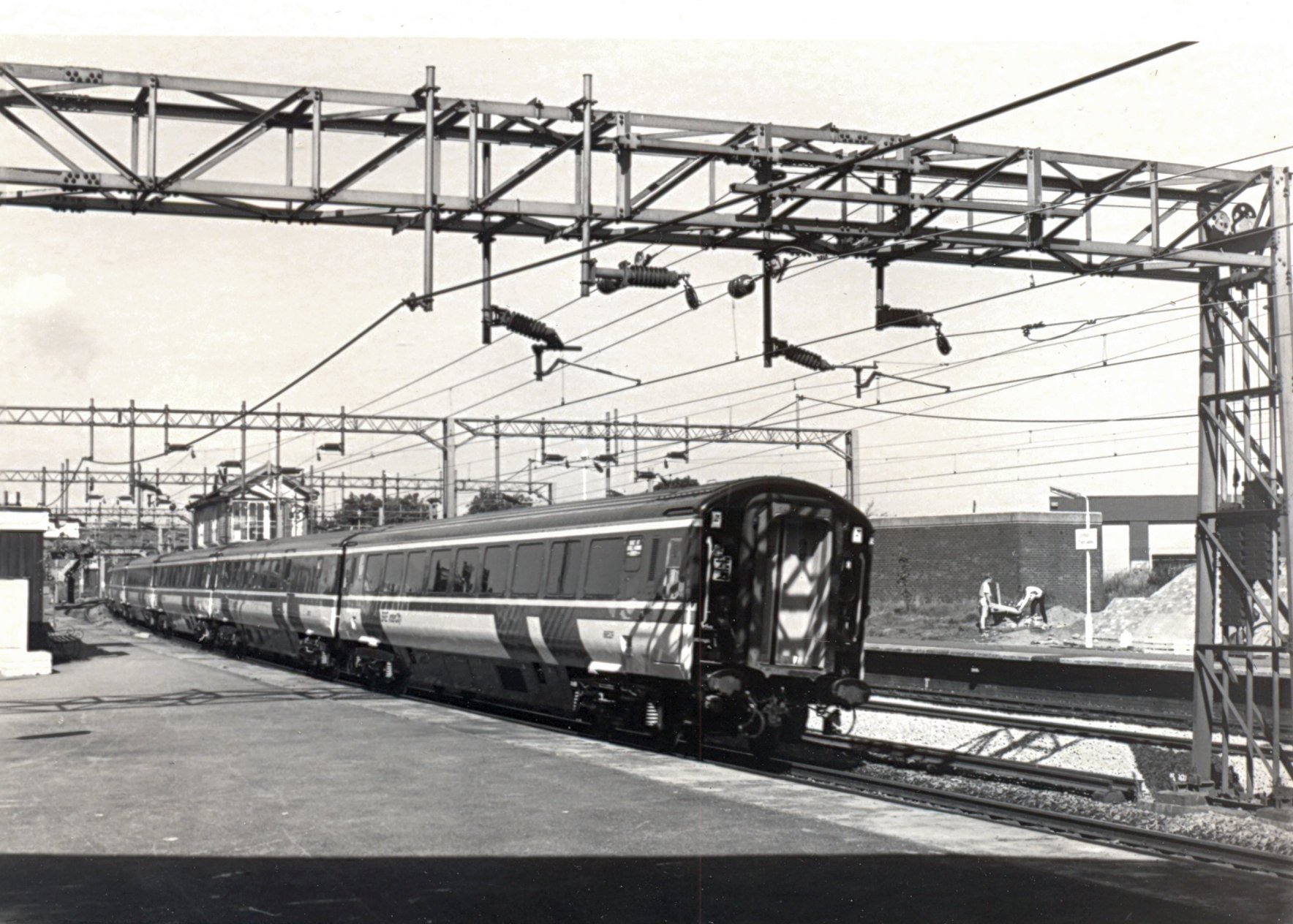

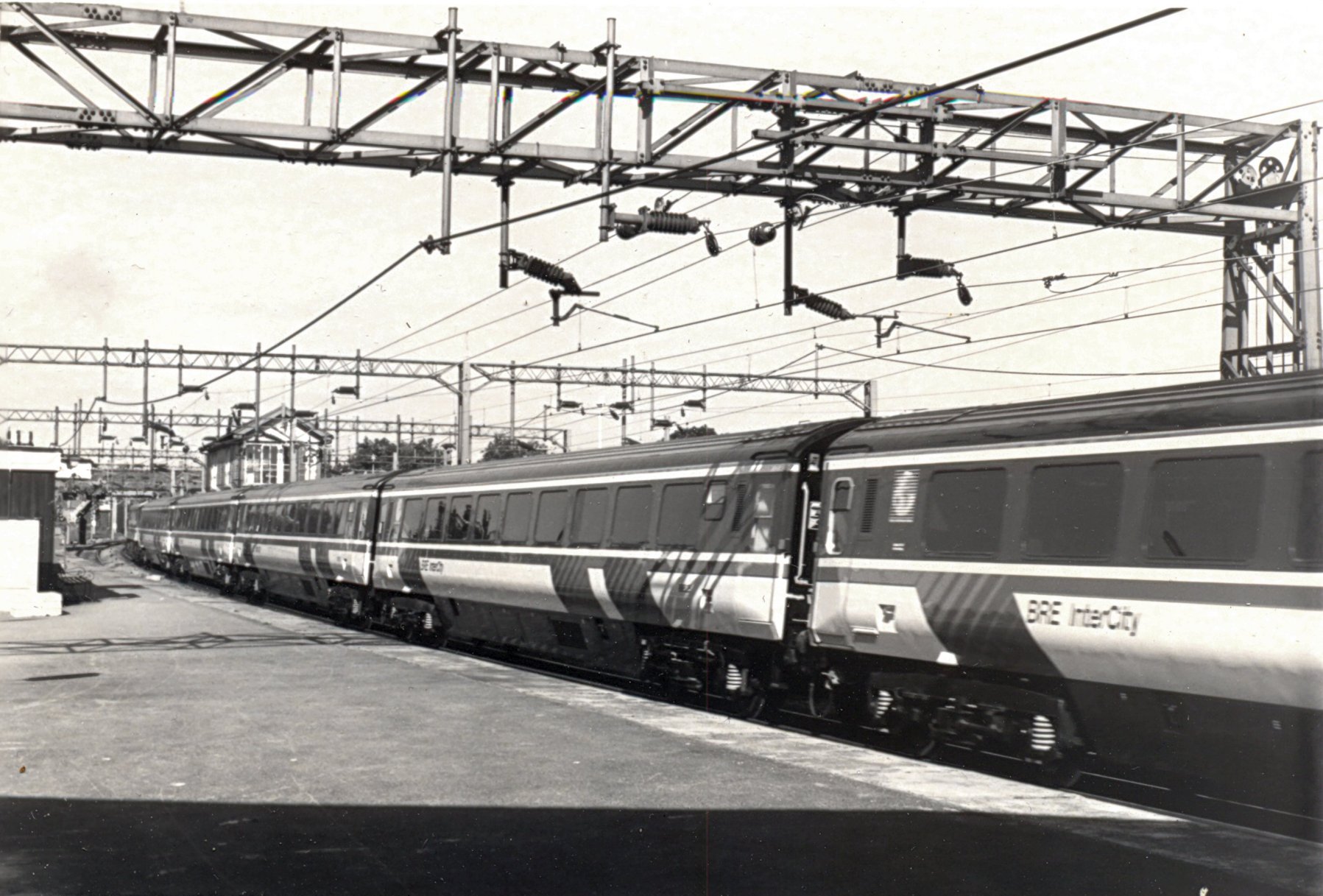

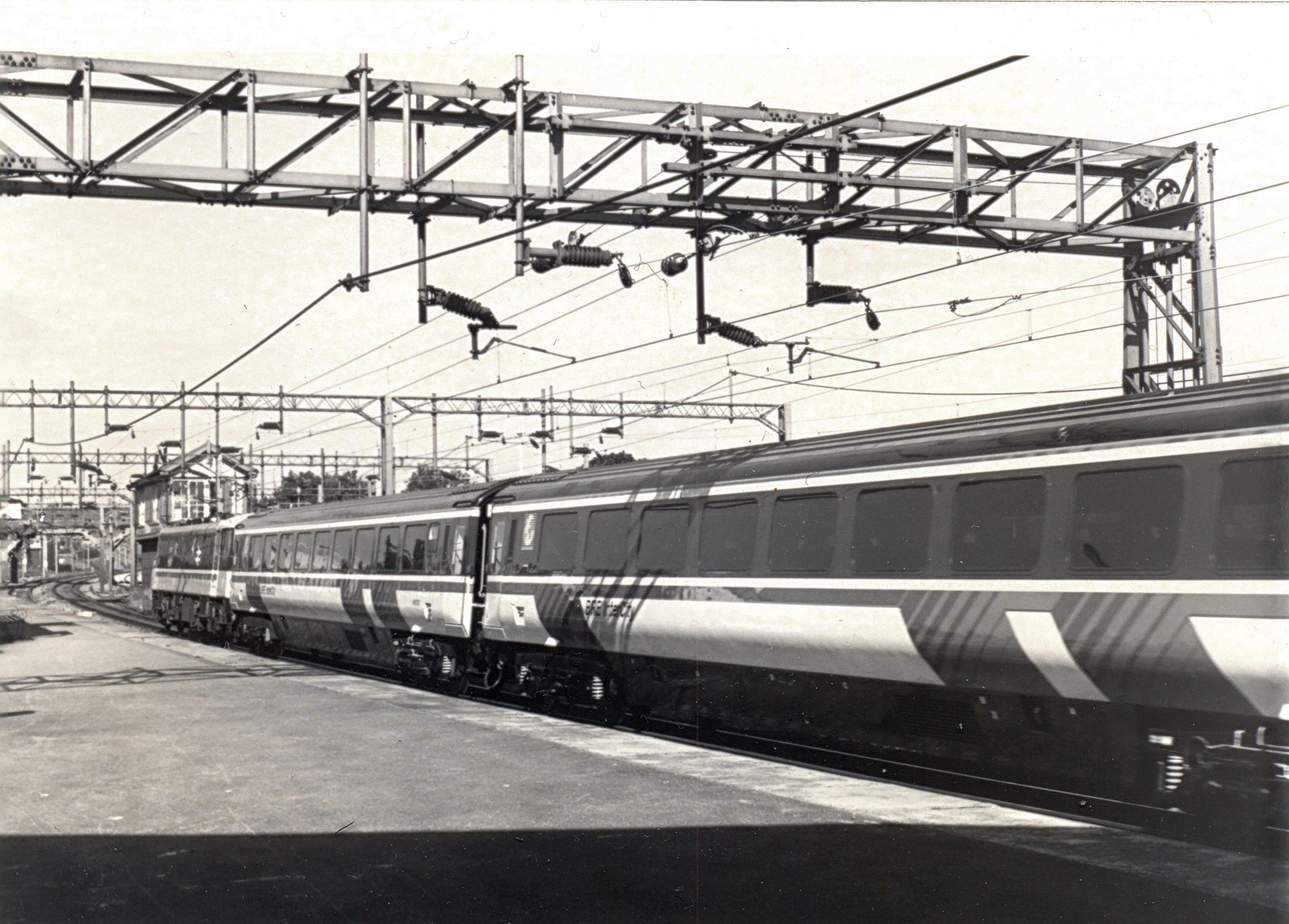

International The train hauled by 87023 heads north through Lichfield Trent Valley on its way to Manchester on Wednesday September 17th

Unknown

International Photo of the centre vehicles of the train

Unknown

International

The rear coaches of the train

Unknown

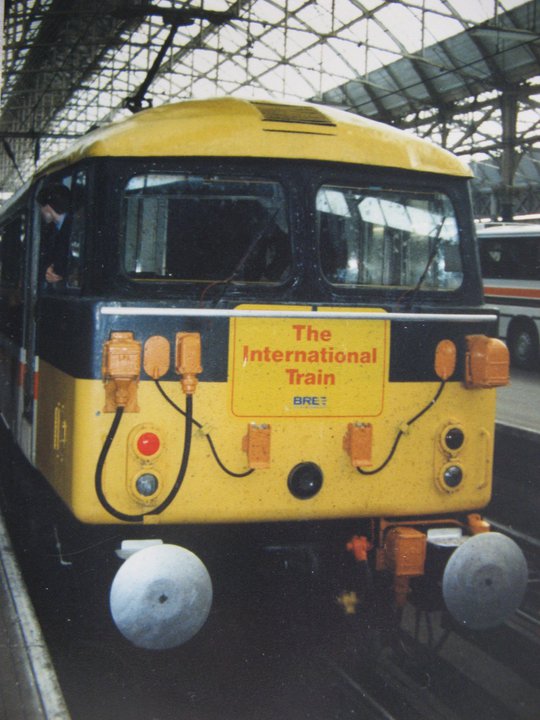

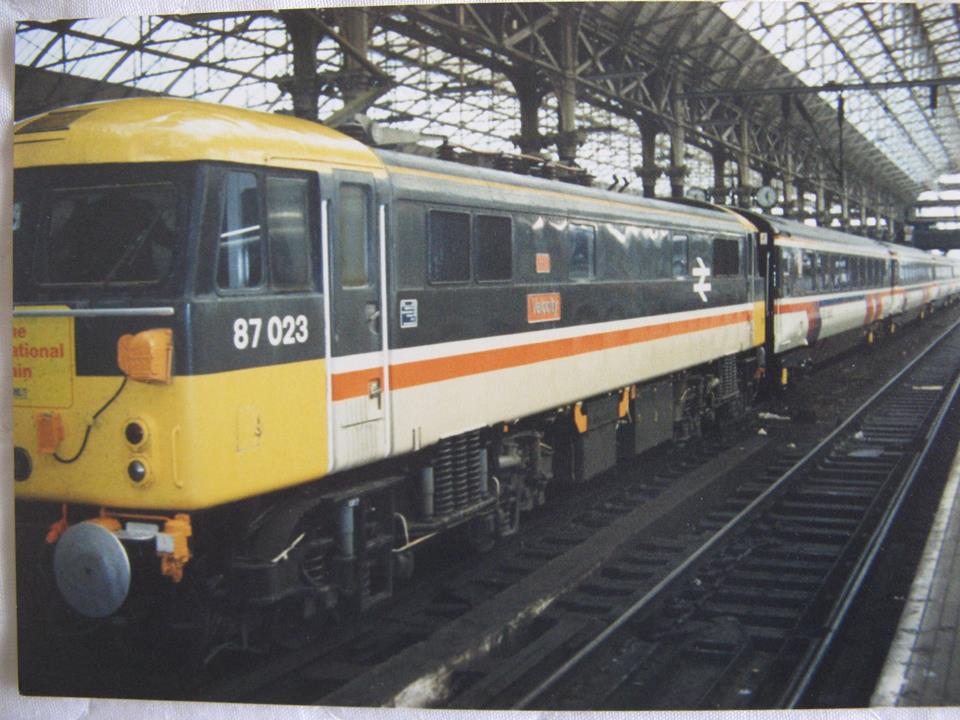

87023 at Manchester Piccadilly after arriving with the special on Wednesday September 17th 1986

Unknown

87023 and train

Unknown

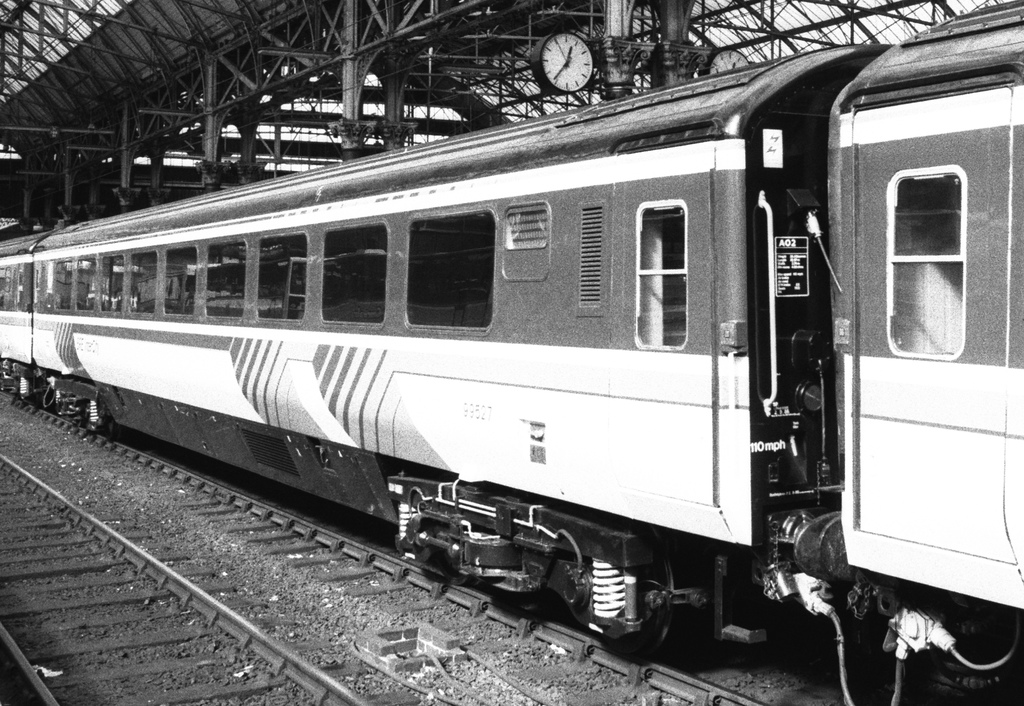

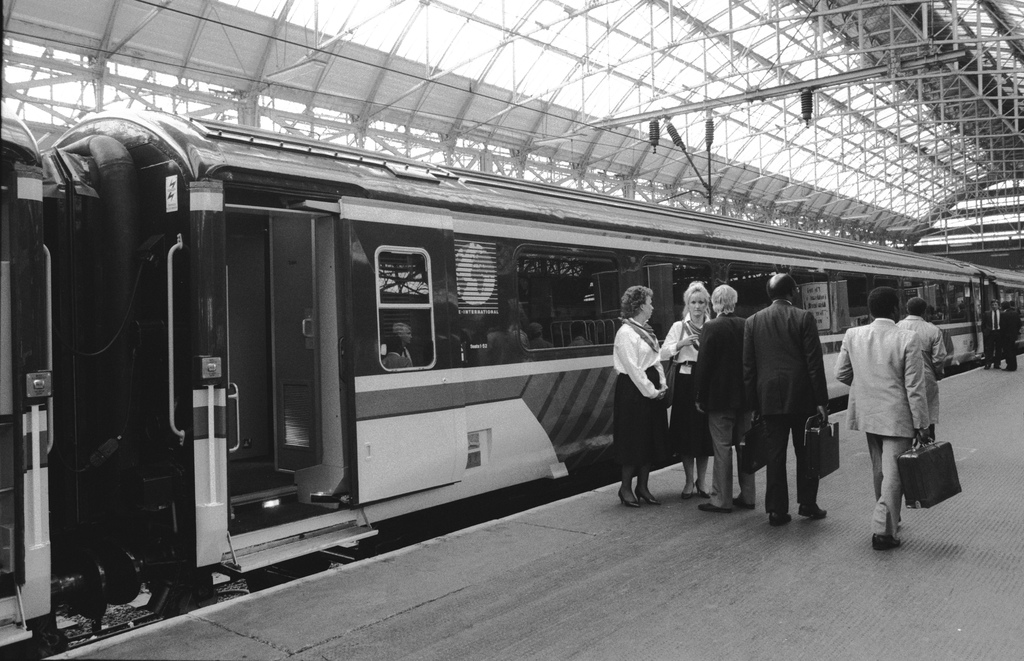

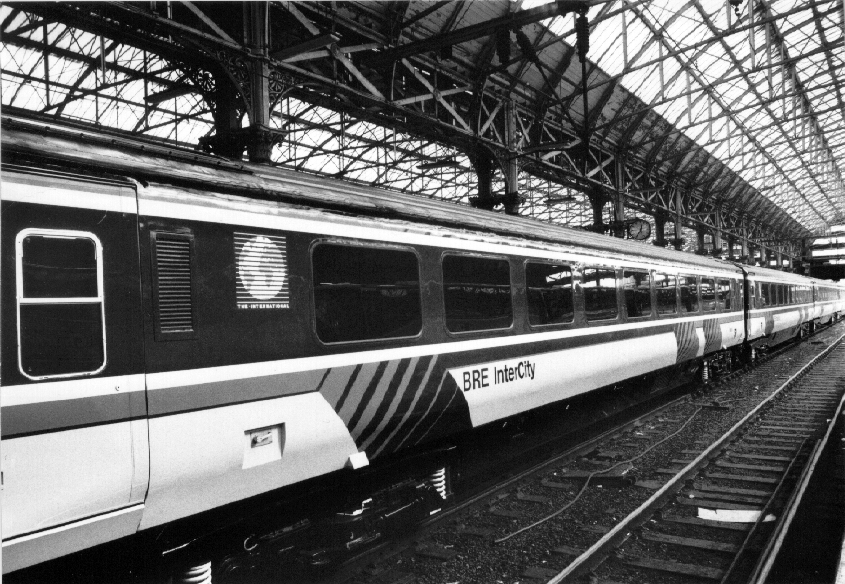

Man Pic Hostesses on the platform at Manchester Piccadilly Sleek coaches The train at Manchester Piccadilly with TSO 99527

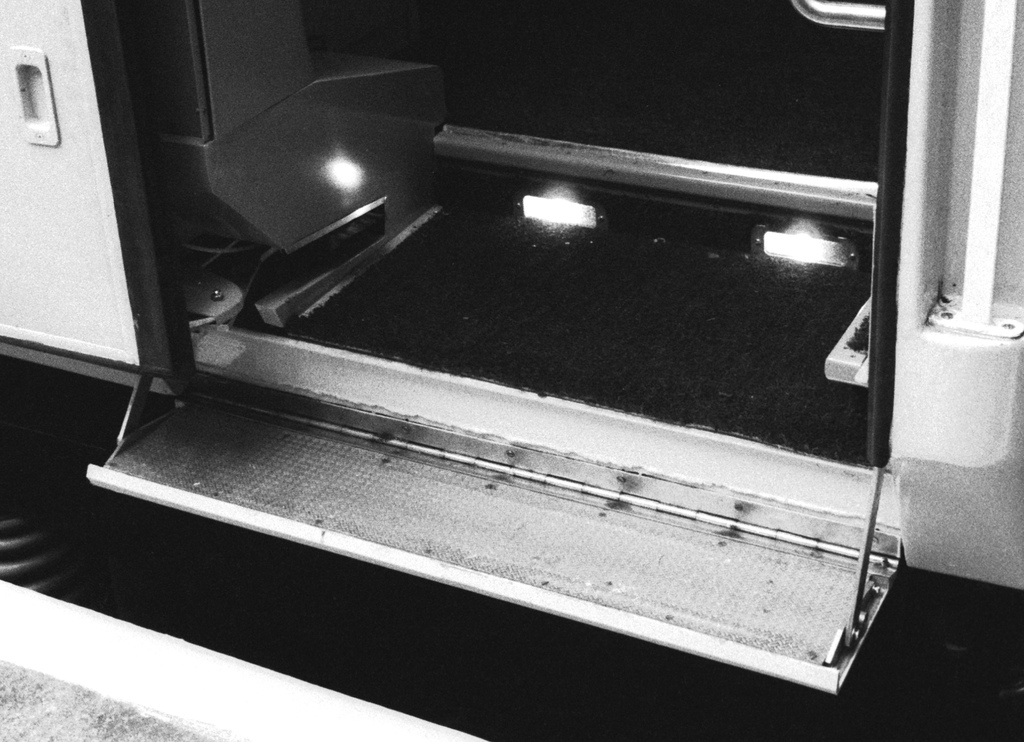

Looking good Another shot of the train at Manchester Piccadilly Door The exterior door showing the illuminated footstep

The coaches were put into service on a Euston-Manchester diagram for a short period later that year but were withdrawn from passenger service and were subsequently used extensively for test loads with the class 89 locomotive.

In 1988 two examples (RUM 99523 and BFK 99520) were taken to the IVA88 exhibition in Hamburg but no orders were forthcoming.

Here are a few photographs of the coaches at the RTC, at Old Dalby, on the WCML and en route to Germany in the late 1980's

Click on the picture for a bigger image - photos are the author's unless otherwise indicated

EDU

One of the International coaches pictured in the EDU at Derby, probably in 1986

Author's collection

RTC A rake of five coaches in the yard at RTC in the summer of 1987

Author's collection

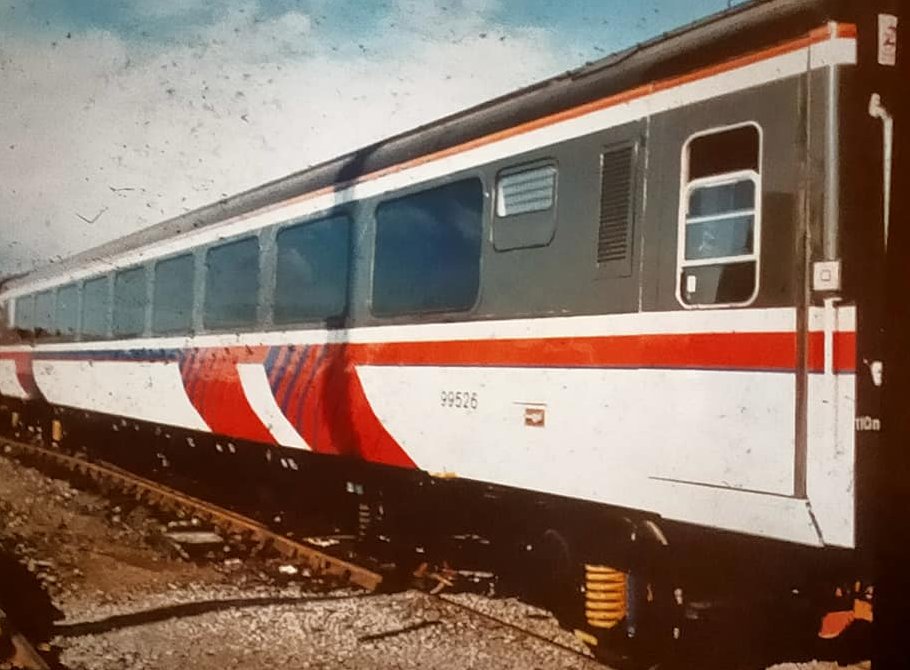

International coach TSO 99526

Andy Barclay

The International train

Andy Barclay

The tie was presented to a privileged few - I have never seen one!

Keith Brown

A close up

Keith Brown

Badge A reproduction of the emblem carried by the International coaches -  taken from a coaster issued at the time Test train

The class 89 loco passes Ledburn Jcn with a couple of test cars and six International coaches in tow on 28th April 1987

Martyn D. Hull

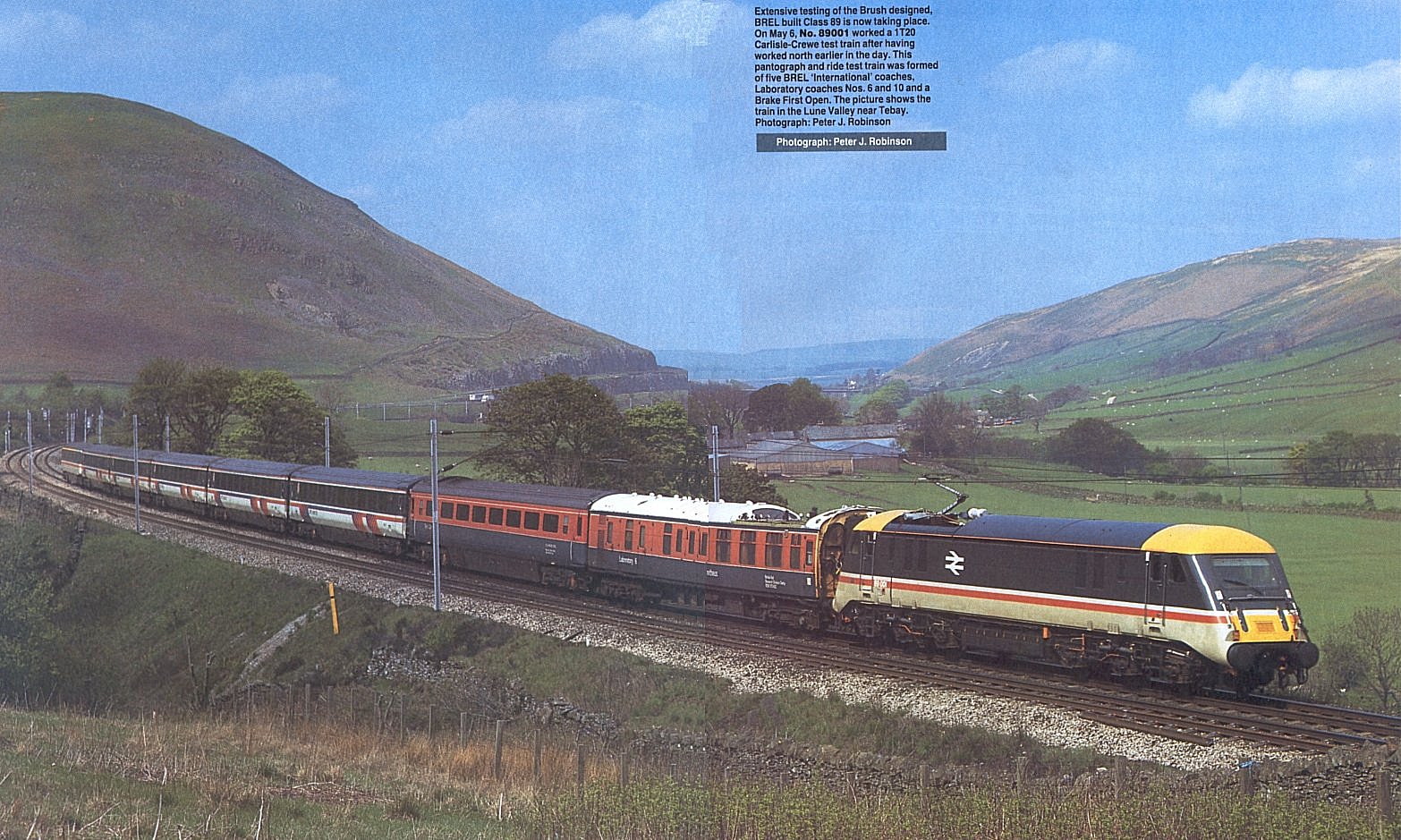

Class 89 Five of the International coaches are show here behind the Class 89 on Shap on May 6th 1987 with R&DD's Lab 6 'Prometheus' and DM&EE's Test Car 10

Peter J Robinson

Old Dalby

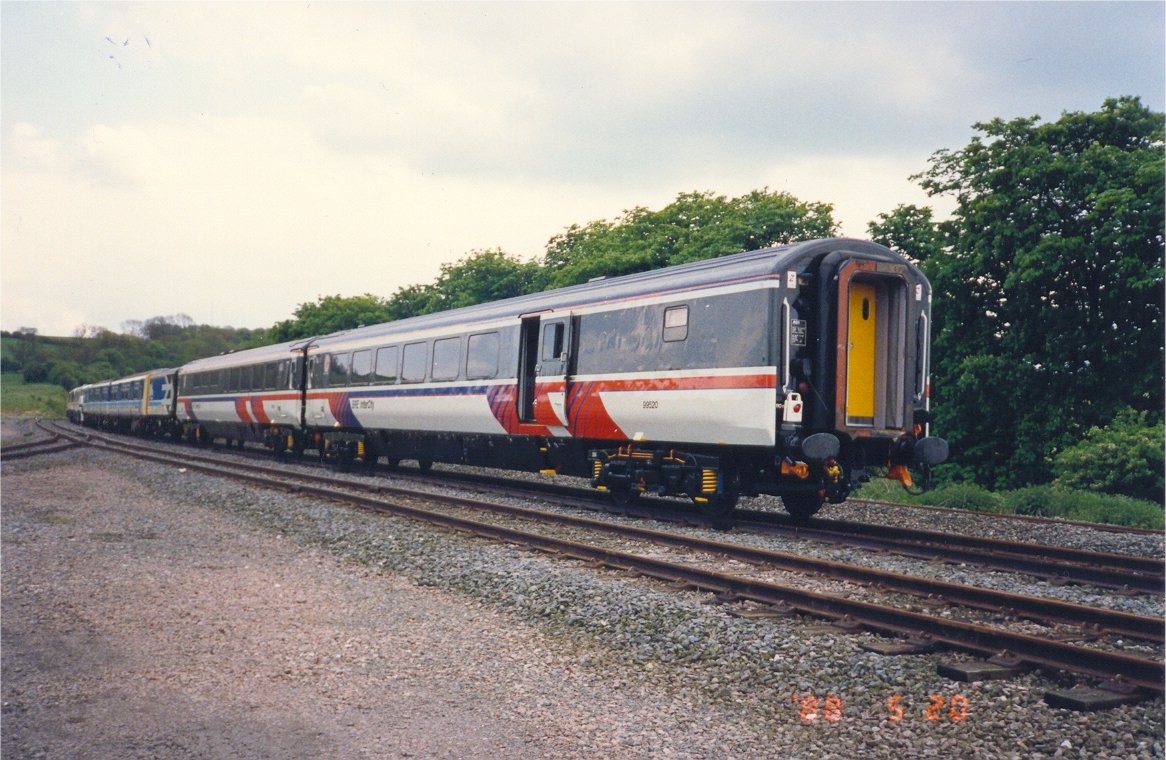

BFK Coach No:99520 at Old Dalby whilst a special train for IVA88 in Hamburg undertook some brake testing prior to going to Germany - pictured on Friday 20th May 1988

Author's collection

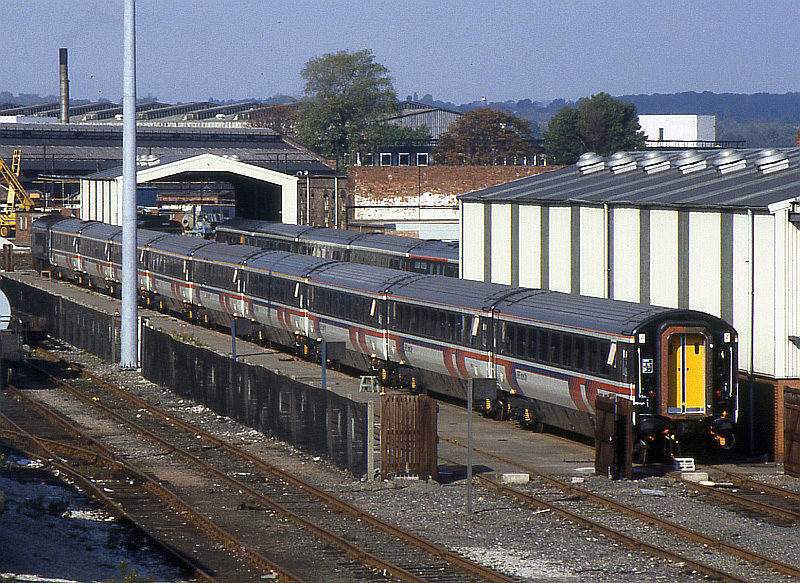

A complete train of nine International coaches on the Litchurch Lane works test track

Peter Kazmierczak

Dover The special train for IVA88 waits in the sidings at Dover Town Yard under Shakespeare Cliff  on 23rd May 1988 with the BFK International coach 99520 nearest the camera.

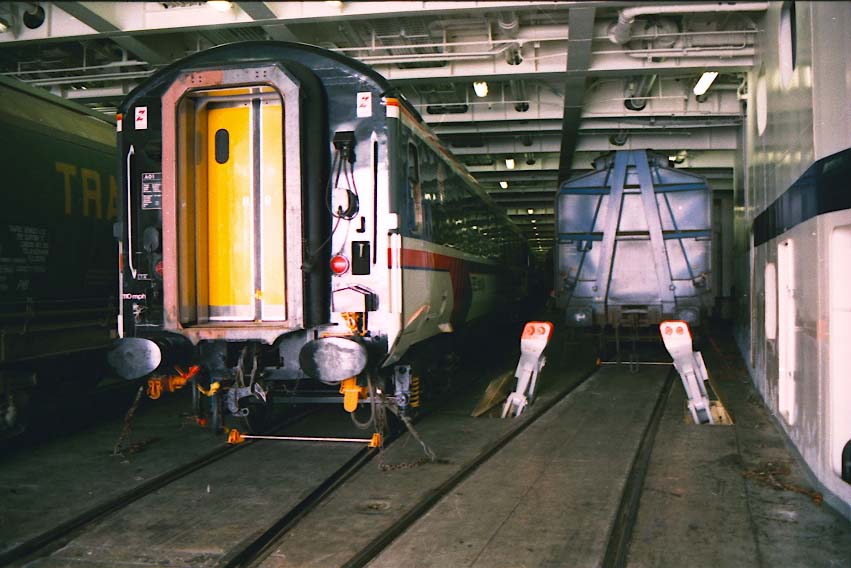

At sea The coaches were chained down to the deck on the 'Nord Pas de Calais' train ferry en route to Germany on 23rd May 1988 - BFK Coach No:99520 nearest the camera.

Hamburg

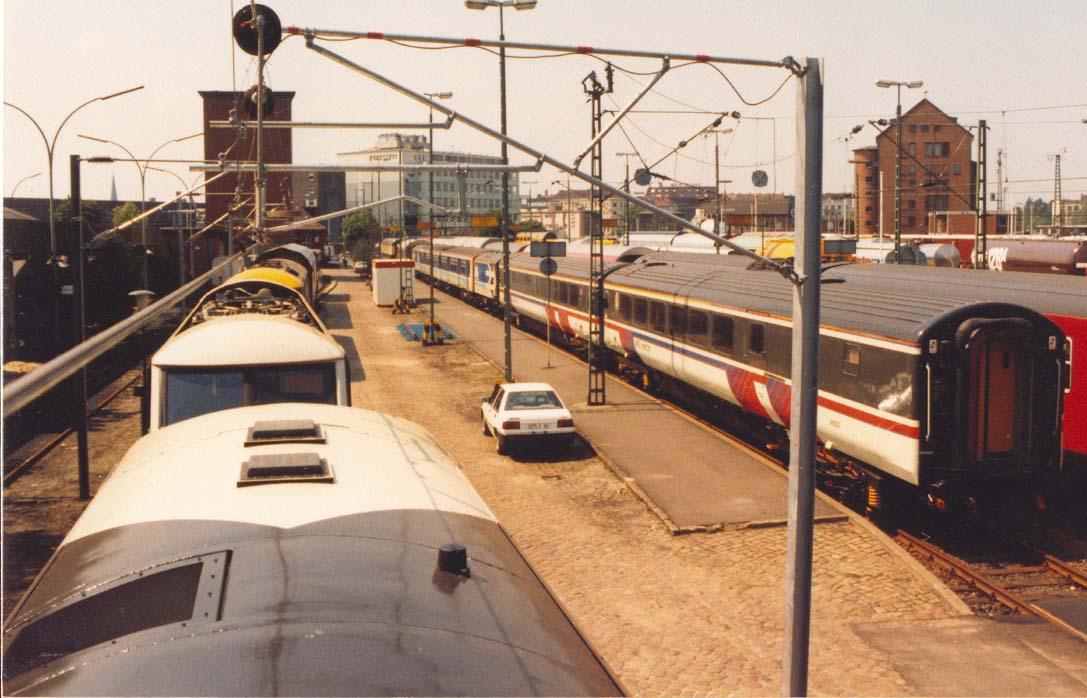

On show in the sidings at Hamburg Exhibition site

Hamburg

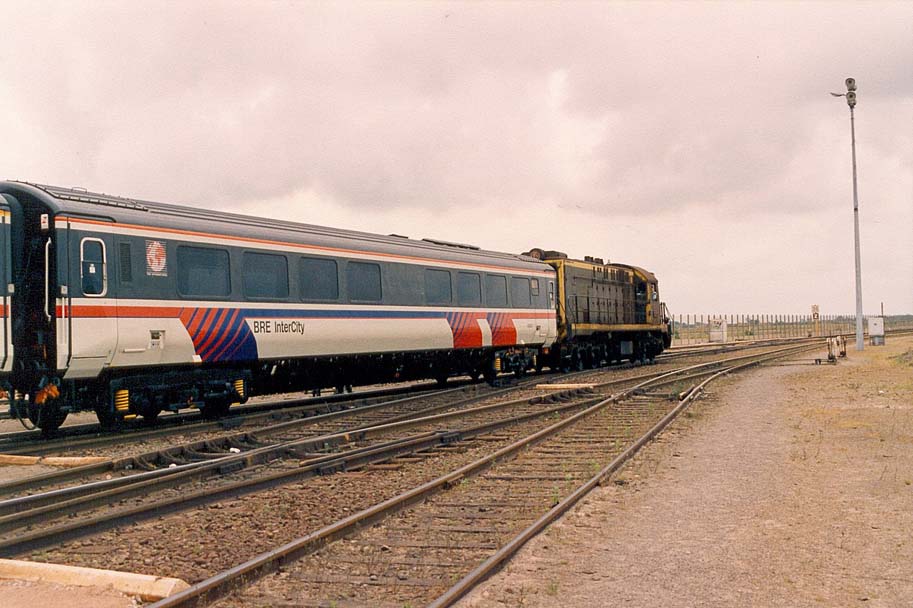

The visitors were impressed by the International Coaches Dunkerque RUM Coach 99523 being propelled onto the train ferry at Dunkerque on 17th June 1988

Although at least one coach (99529) was fitted with T4 bogies from new, they were eventually equipped with BT10 bogies. However in late 1986 opportunity was taken to test the T4 bogie at high speed . 99519 was the eleventh coach in the BREL International Train coaches (numbered 99520 to 99529 & fitted with BT10 bogies). This coach was first numbered 99530 in the sequence but later re-numbered to 99519 as it appears that 99530 was already allocated to another vehicle. It was used to test the T4 bogies on the ECML at speeds up to 145mile/h. It looks like it was cobbled together judging by the different style of windows and door detail.
It didn't make it to Ireland when the rake of ten were sold to CIE and it may have ended its days back at Derby C&W Works - see photo below

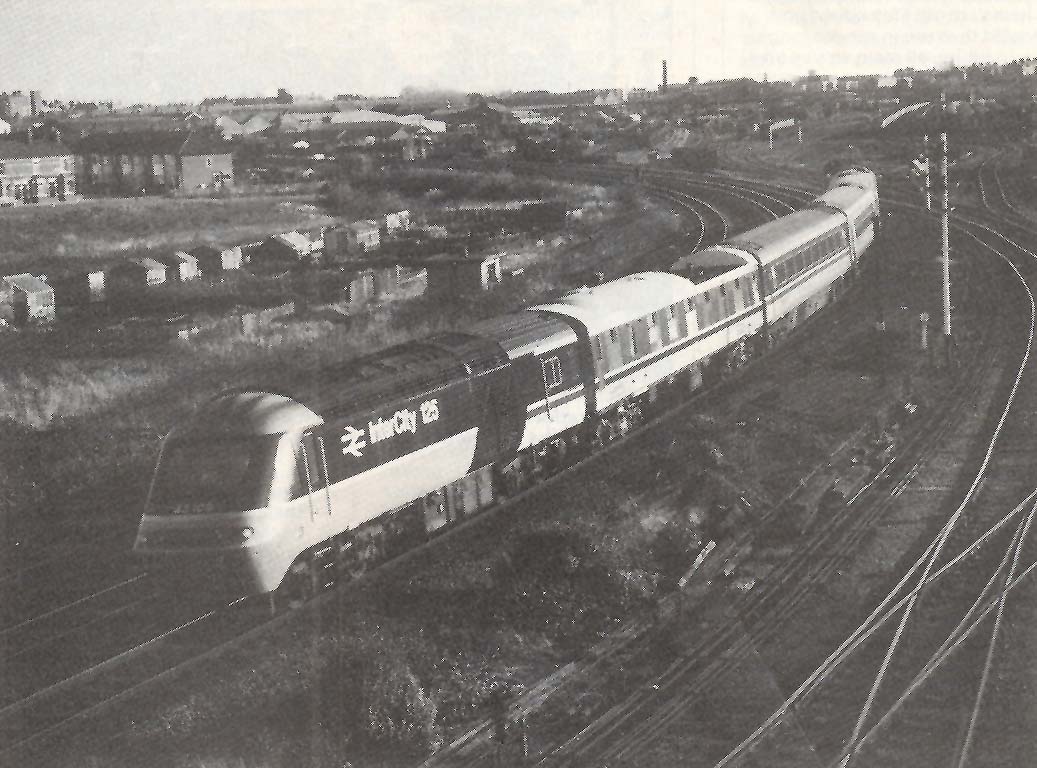

The high speed test train comprising two power cars (Nos. 43109 and 43118), two Laboratory coaches, Lab One and Lab 15 'Argus'  a Mk3 TSO and 99519, the extra 'International' coach which was fitted with the T4 bogies, It ran between York and Darlington on Saturday, November 8 1986 and is shown here arriving at York from the south

Andy Garrett

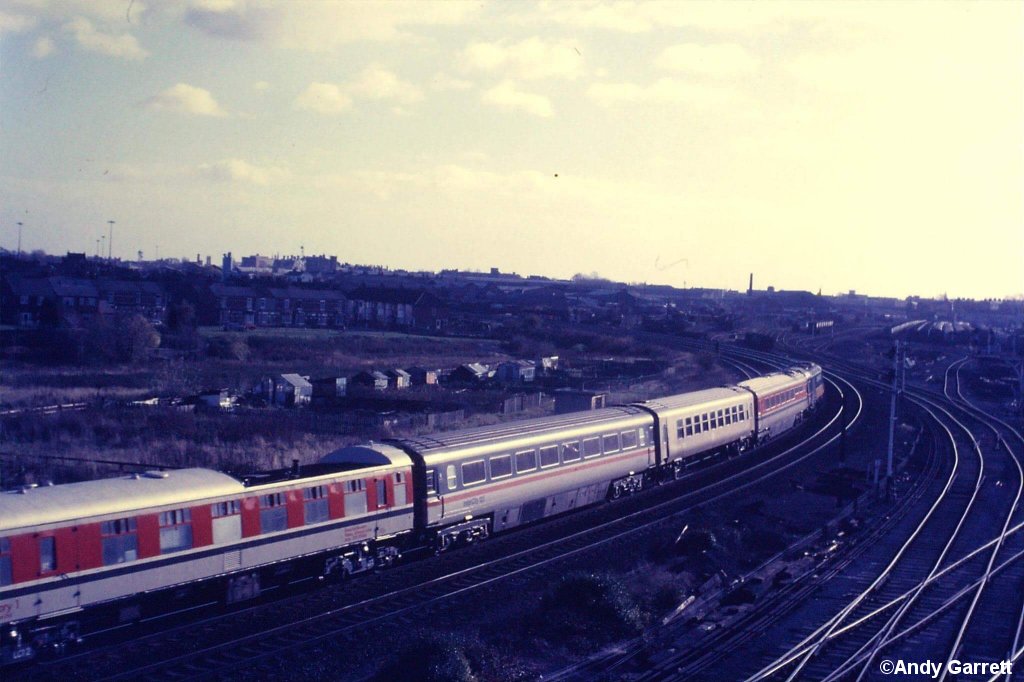

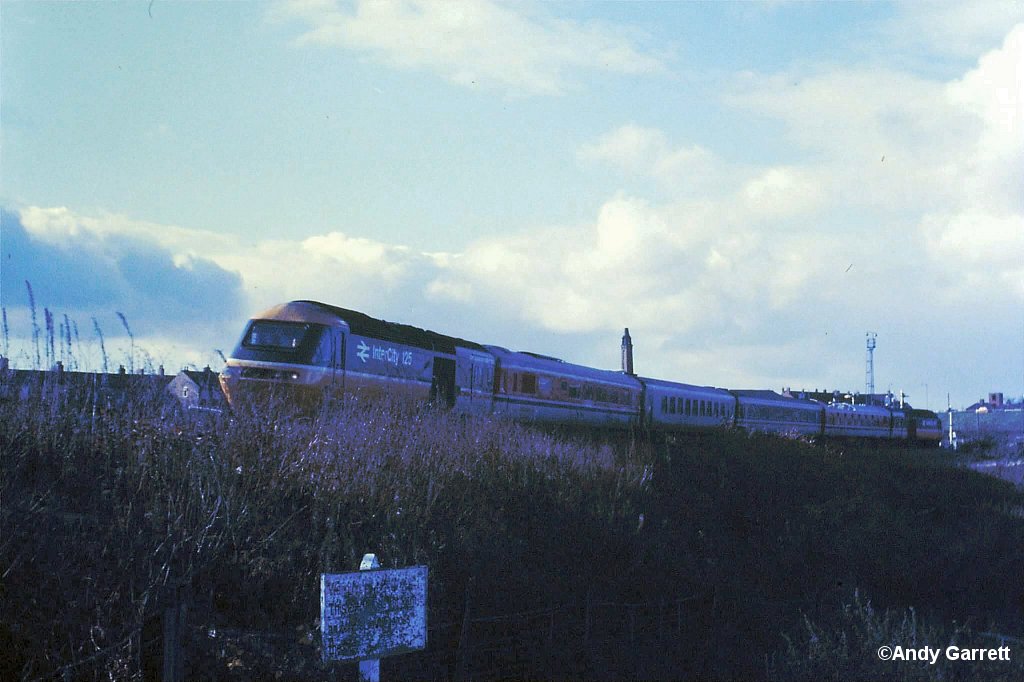

Heading north from York

Andy Garrett

A very good picture of the consist, Lab One nearest the camera, with the Mk3 TSO and International coach No: 99519 followed by Lab 15

Andy Garrett,

Test train

It is pictured here passing York Yard North

Peter J. Robinson

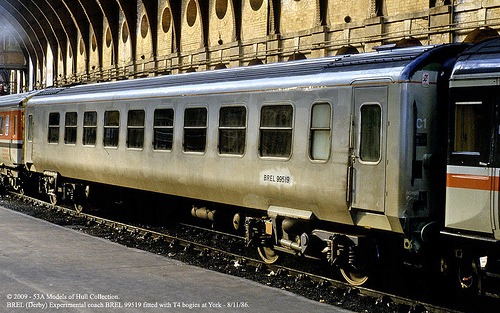

T4 bogies On the same day it was pictured at York Station. This vehicle was previously numbered 99530 as the additional vehicle in the sequence but evidently this number was already allocated hence the coach was re-numbered.

53A Models- Flickr

May be an image of train and railway

47229 in the centre roads at Nottingham with a short test train pictured on 21st October 1986. This looks like a shakedown test with the additional International Coach fitted with T4 bogies which is clearly marked BREL 99530

Edward Houlston

May be an image of outdoors A closer view of 99530 at Nottingham

Edward Houlston

May be an image of train and railway

Lab 15 Argus was at the rear of the train and Lab 3 is behind 47229 at Nottingham.

Edward Houlston

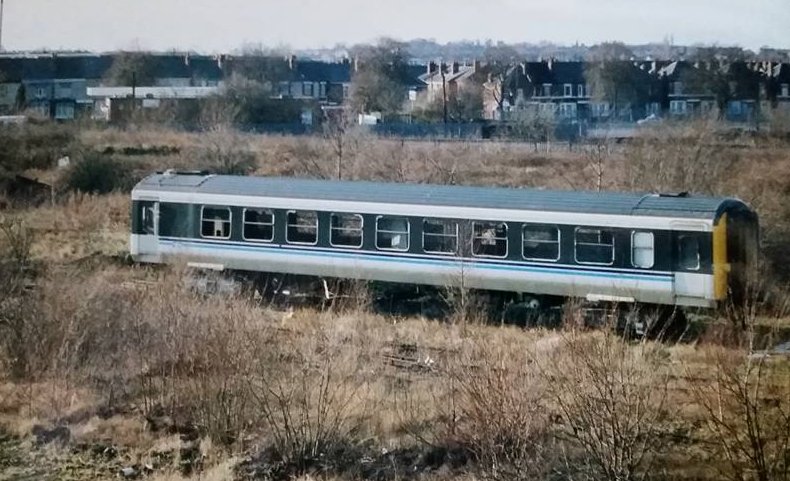

This could be the original coach 99530/99519 pictured at Derby C&W Works on 22nd December 1992 having been re-painted for a livery trial perhaps?

Jacob Charlesworth collection





Variants of the T4 were fitted to the Mk3 DVT and later to class 158s and 159s

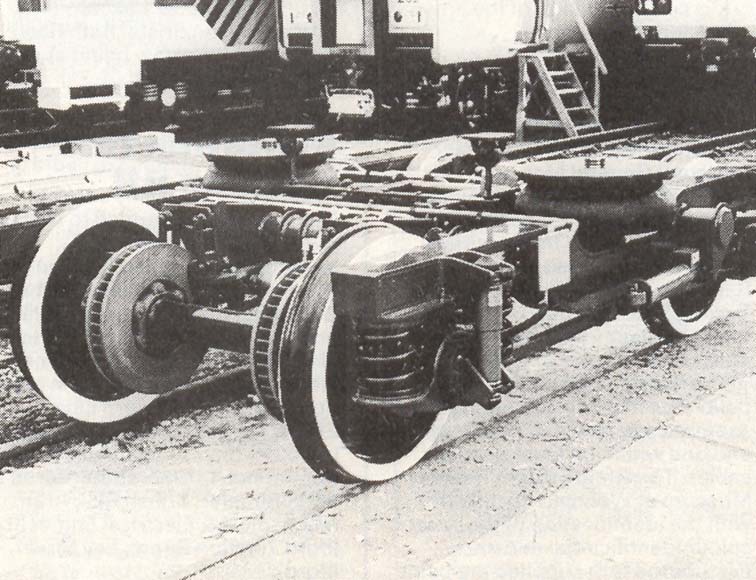

T4 Unfortunately, the T4 bogie was not chosen for fitting to the Mk4 coaches but did find favour on the Mk3 DVT's.

BREL

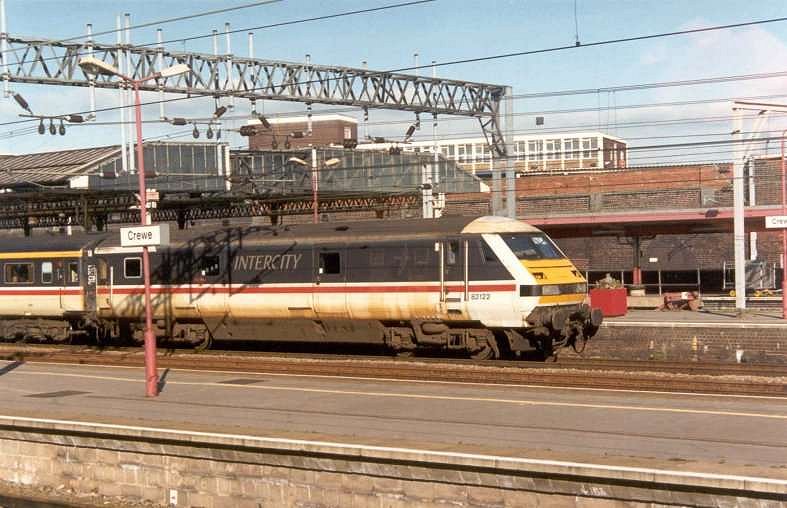

T4 bogies A Mk3 DVT fitted with T4 bogies heads a southbound working at Crewe in 1999

Author

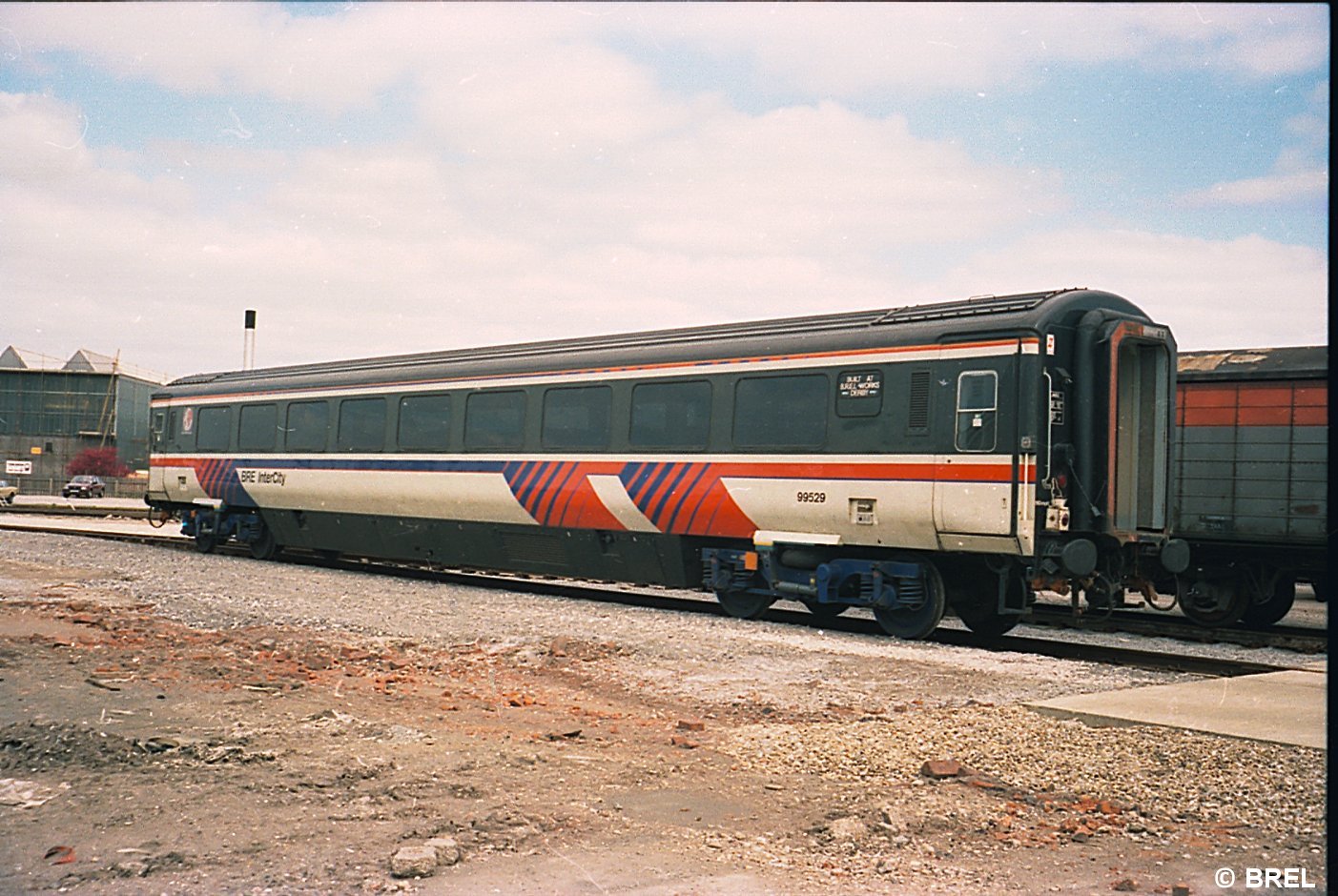

During the late 90s active lateral suspension was fitted to TSO 99529 as a trial but although it was extensively tested the active suspension was not pursued.

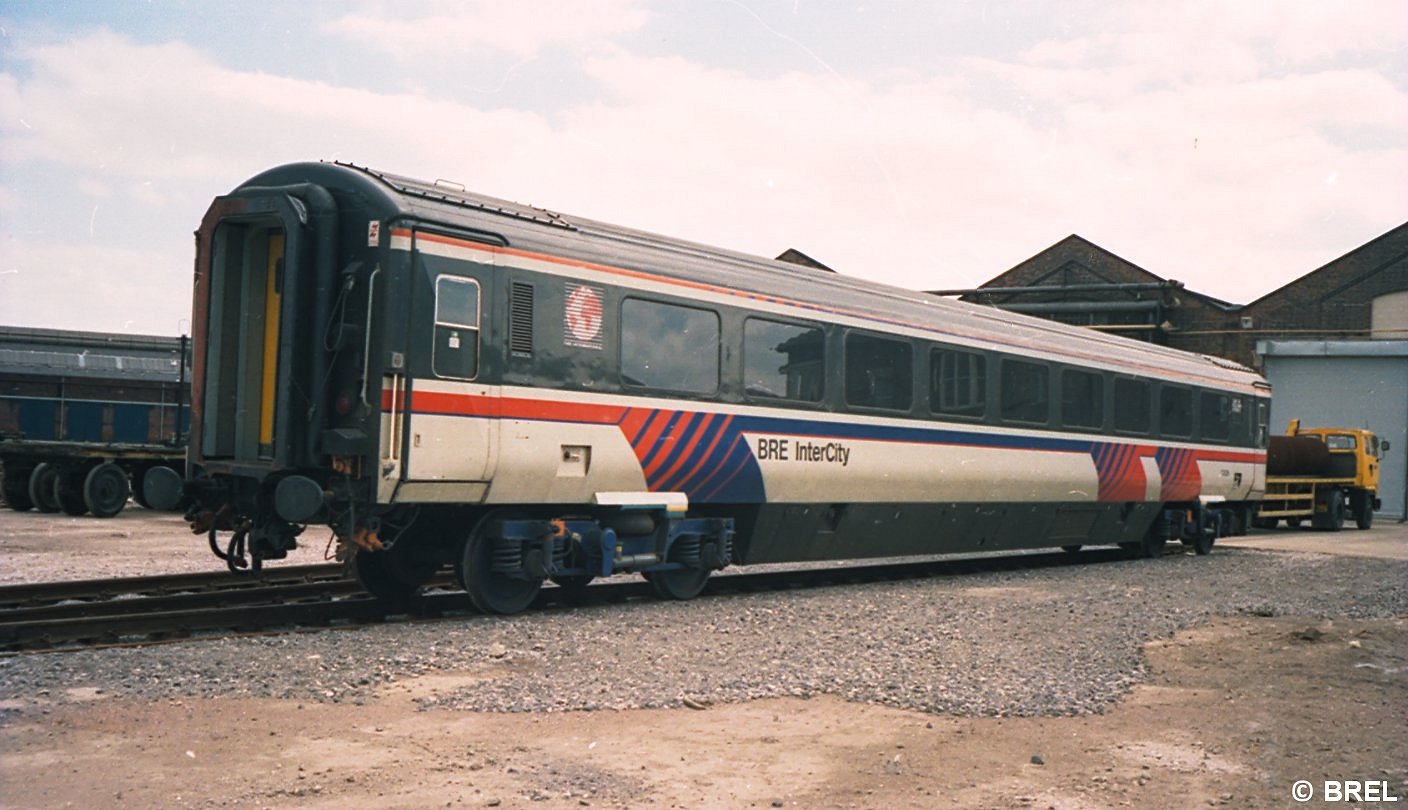

99529 TSO 99529 at Derby Litchurch Lane fitted with T4 bogies with active lateral suspension in 1991.

Authors collection

99529 Another view

Authors collection

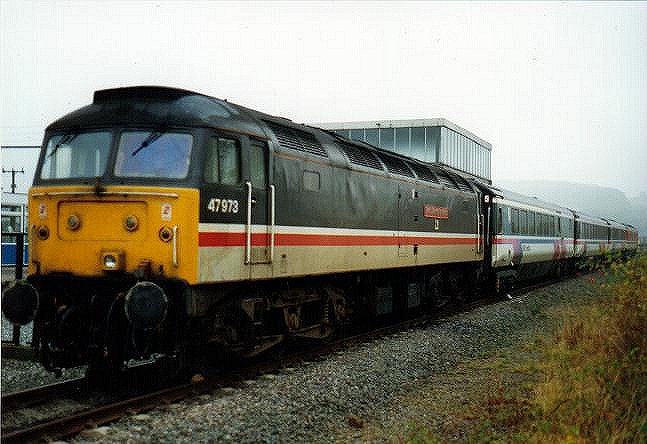

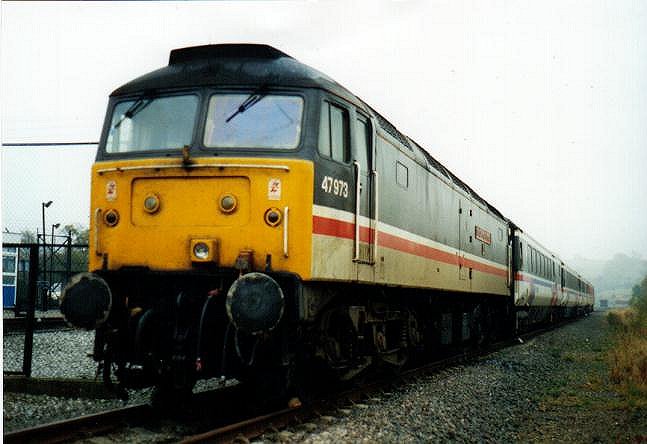

International coaches In October 1991 Class 47 No 47973 'Derby Evening Telegraph' stands outside the compound at the Old Dalby test track with three coaches from BREL's 'International' Train i.e. BFK 99520, TSO 99529 fitted with T4 bogies with active lateral suspension and 99523 RUM Buffet plus R&DD's Lab 15  'Argus'

Steve Andrews

After languishing in Derby for a number of years the ten coaches were eventually sold to Irish Railways (Iarnod Eireann IE) in 1994 at a knock-down price and extensively re-furbished - including fitting with new T4 bogies to the same design as the ill-fated EPS 'Nightstock' but  5' 3" (1600mm) gauge. IE converted the many different interior layouts to their own standard design and fitted their own design of powered doors similar to those used on the Irish Mk3 stock.

Until the middle of 2008 they formed one of the coaching rakes for the services from Dublin to Galway and were branded 'Cú na Mara', (Connemara) but still retained the 'International' globe emblem inside.

Although they operated the named train they were generally used in common with Mk3s. Nine vehicles were re-numbered by IE 6201 to 6208 plus 6401. 6201 was a composite, the others 'Standard' class and 6401 was the Buffet Standard. One other vehicle remained in Inchicore Works in its original BR InterCity livery. Train supply was delivered by 76xx series Mk3 designed brake generator vans.

Look on Youtube® for a video clip of an express on IE with eight of the former 'International' coaches under '071 BREL Internationals'. Search for DuffBasher or 'BREL coaches'

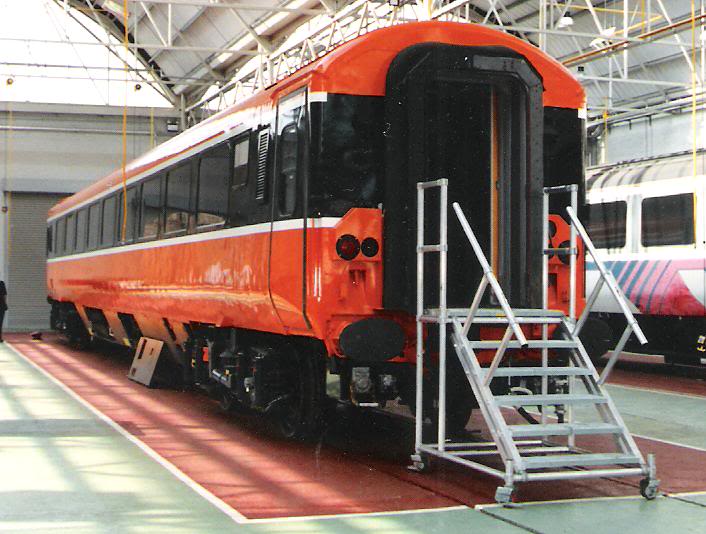

One of the coaches nears completion in Inchicore Works

Unknown

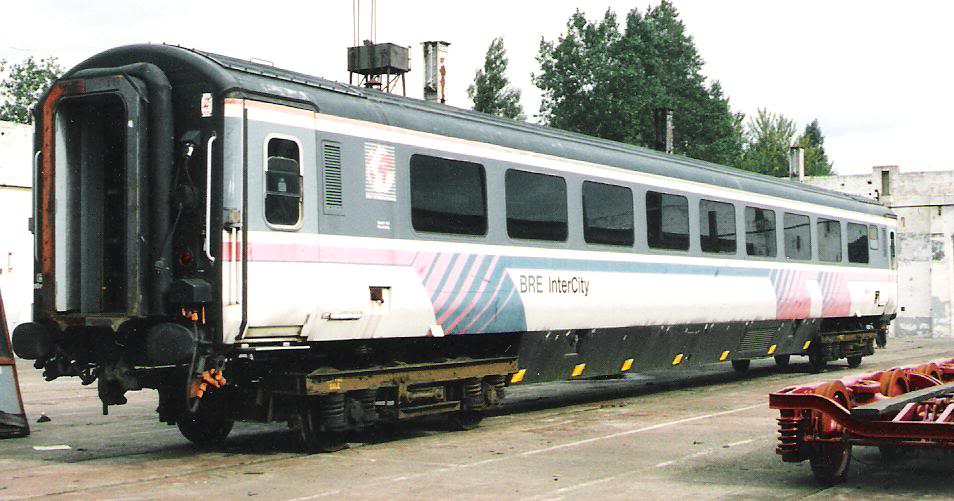

The coach which never was - in original BR InterCity livery in the yard at Inchicore. This never entered service on IE

Unknown

Inside

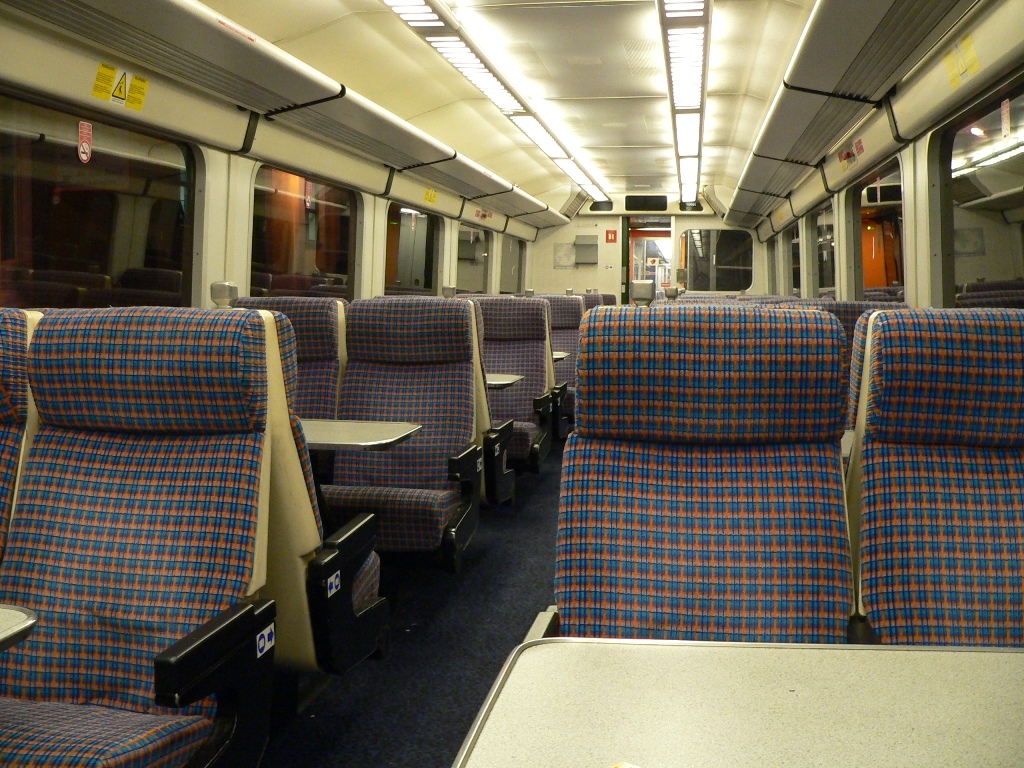

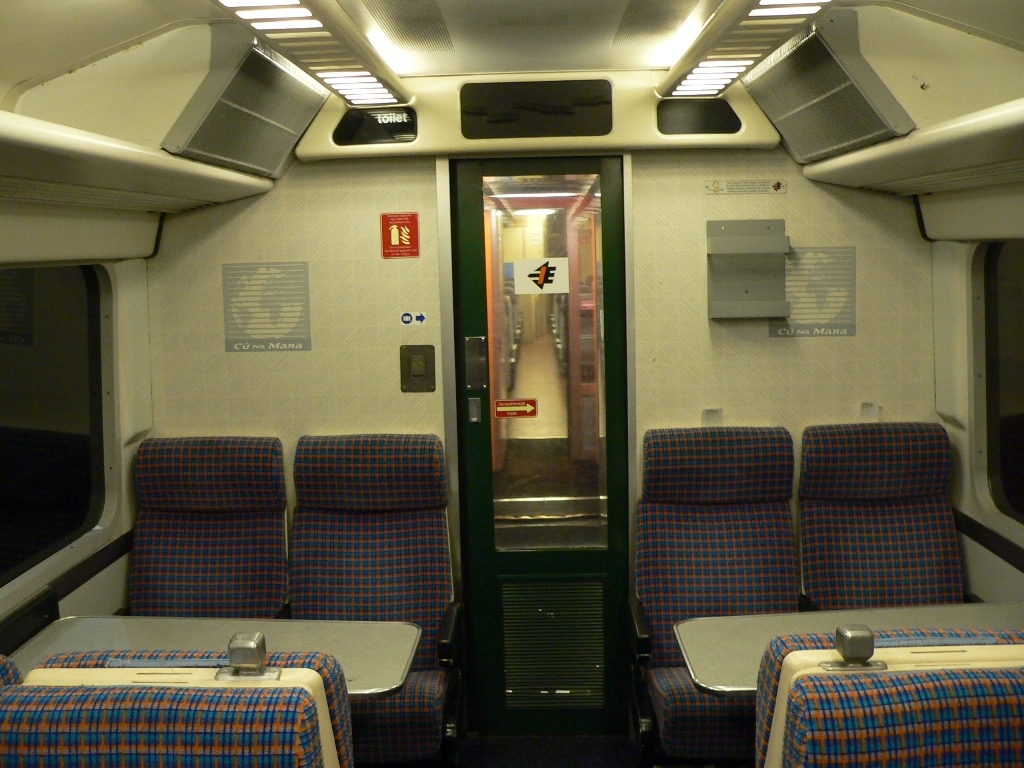

Inside 6208 one of the open seconds (standards) in Iarnod Eireann service. Note the original  International Train emblems on the vestibule panels overwritten with 'Cú na Mara'

Flickr - rowanC82

Exterior view

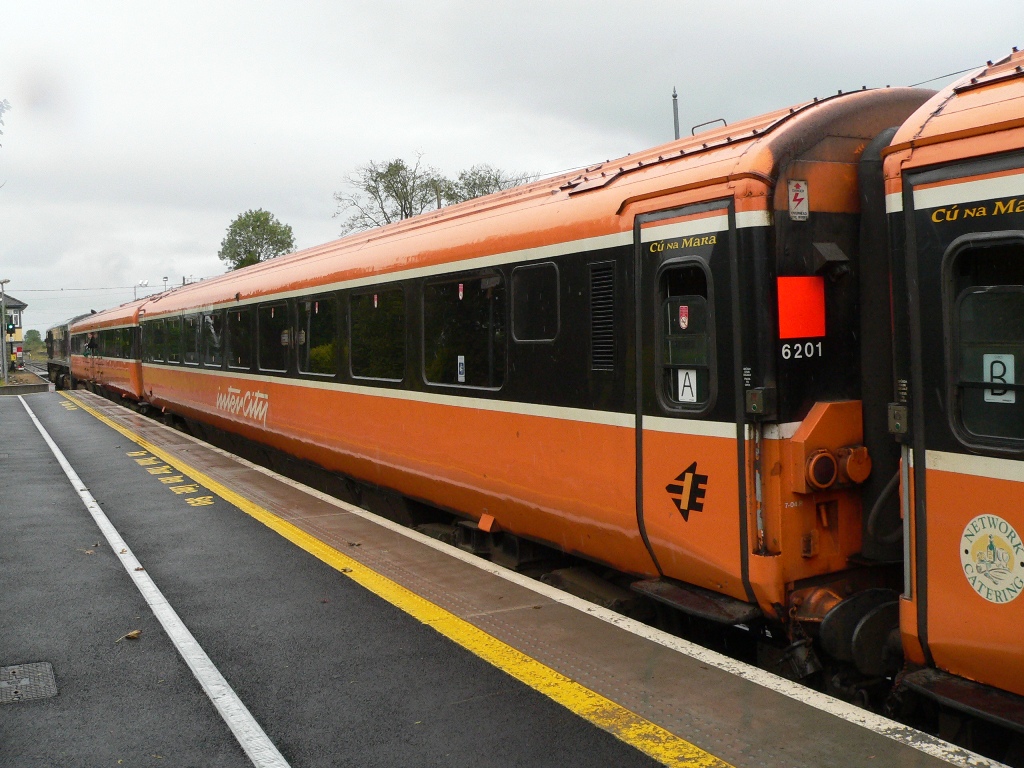

Coach number 6201 at Athenry

Flickr - rowanC82

Inside

Inside 6208

Flickr - rowanC82

Doors

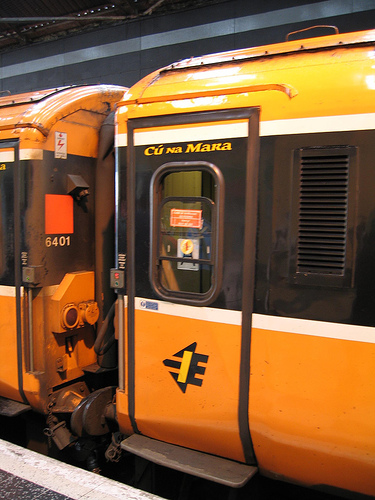

Close up of the power-operated doors - note that the adjacent coach is the buffet car 6401

Flickr - wfbakker2

For more pictures of the coaches in service look here on Neil Dinnen's new site

In November 2008 they were reported as being stored at Dublin North wall as the DMU era ousted loco-hauled stock in Ireland. Numbers 6201, 6203. 6204, 6205, 6206, 6207, 6208 and 6401.

In mid July 2009 some of them had been sold and two (6203 & 6205) less bogies were moved to the Killashee House Hotel in Naas. County Kildare in Ireland and three others (6204, 6206 & 6207) were moved to RAF Spadeadam, Cumbria, UK where it is understood they were destroyed by explosives in April 2010 (!).

The remaining 5 (including the BSK vehicle) were scrapped  at Inchicore works, Dublin in late 2009

There are some photos here on Neil's excellent new site of the two coaches for Naas on the move in Ireland.

It seems that the plans for the coaches at their new home at the Killashee House Hotel did not come to anything but 6203 was acquired by the Caragh Nurseries in Co. Kildare where it serves as a coffee shop

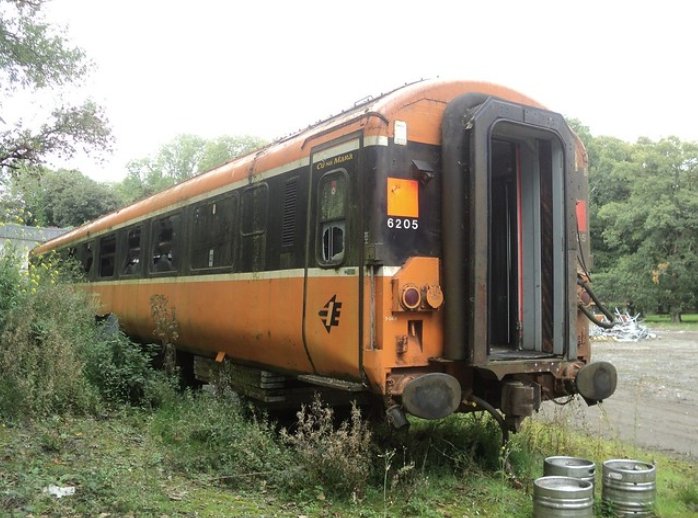

6205 at the Kilashee Hotel

Rod Holohan

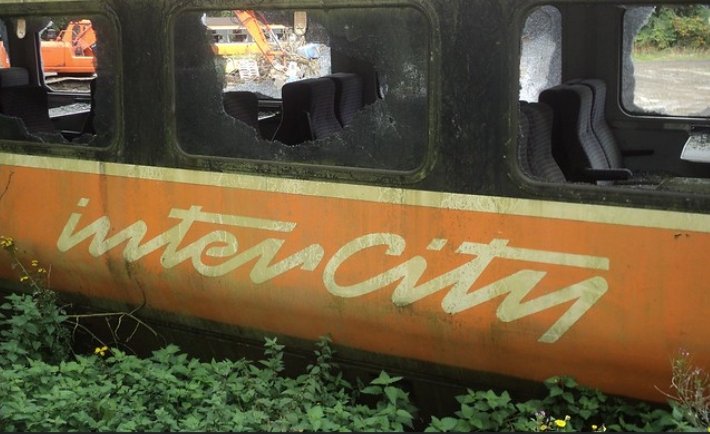

Intercity Logo

Rod Holohan

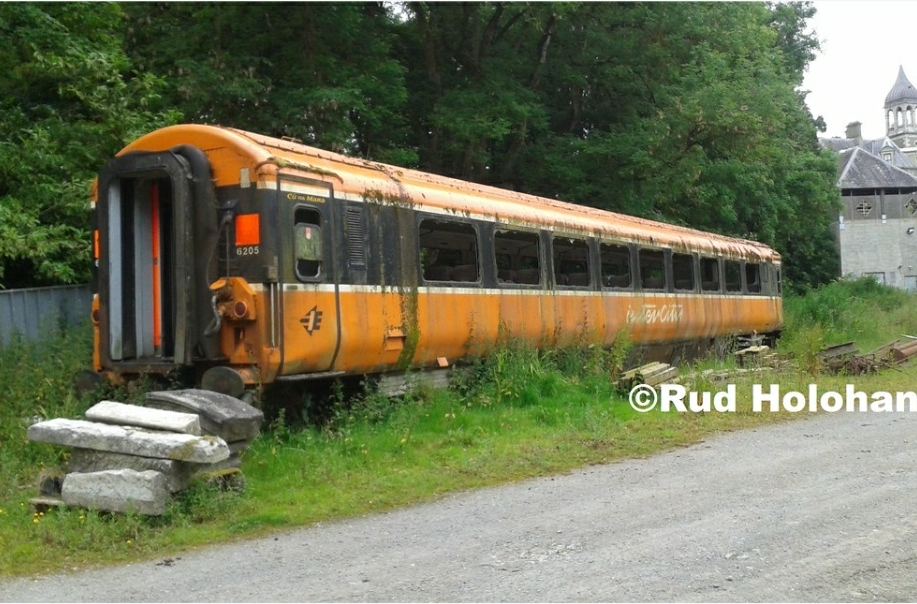

6205 at the Kilashee Hotel

Rod Holohan

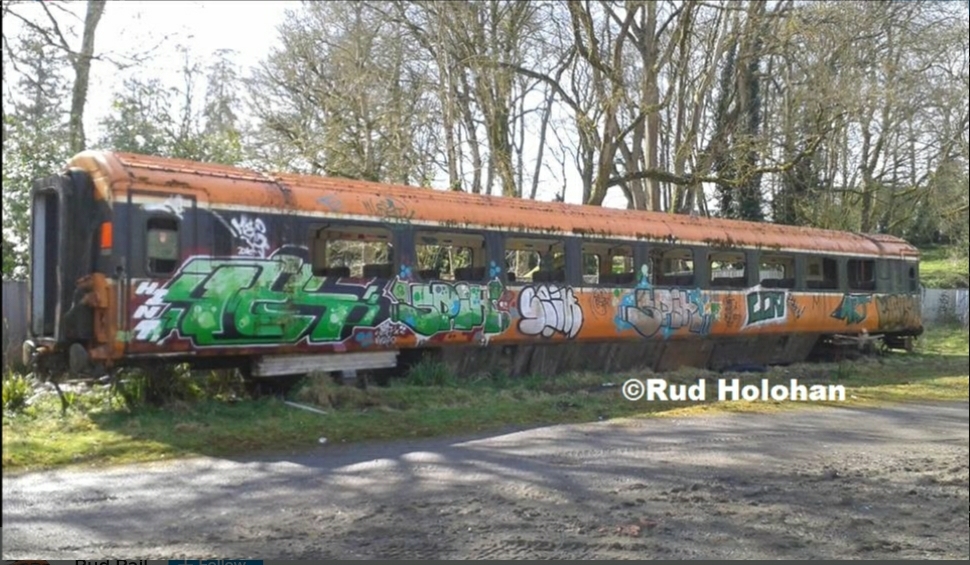

Final state of 6205

Rod Holohan

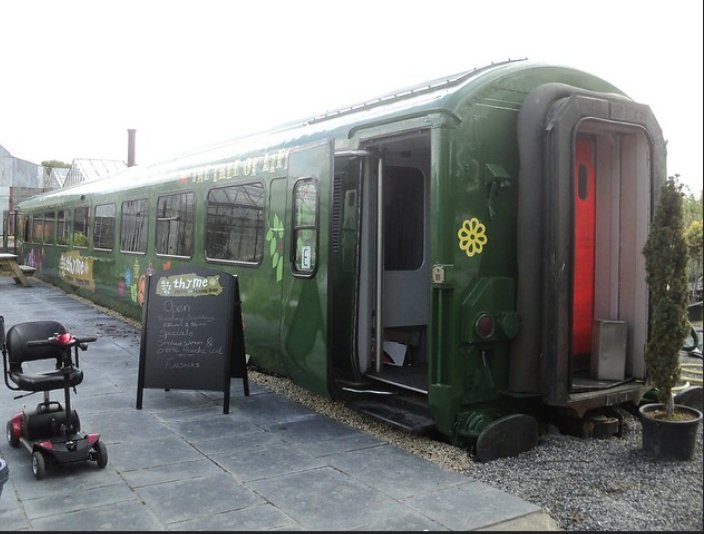

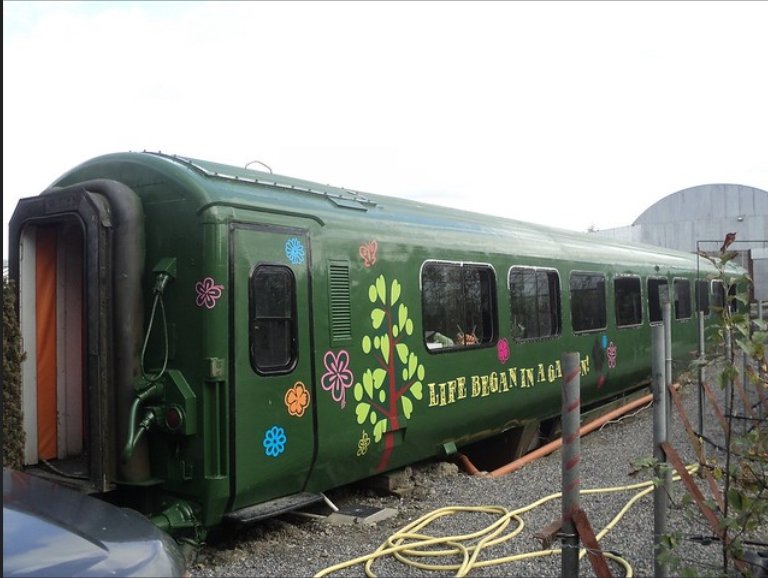

6203 as a Coffee shop

Caragh Nurseries

6203 as a Coffee shop

Caragh Nurseries

If you fancy your own model of the International Train look here for some inspiration in 'N' gauge or here for Southern Pride's latest overlays for OO gauge. Follow the link to 'BR Mk3 coaches' then 'conversion kits'.
