Plasser UFM 160 testing

During the summer of 2003 a new type of high speed infrastructure measuring machine was tested by Serco on behalf of Network Rail. This was the  UFM160 2 car DMU built by Plasser & Theurer  in Austria which was to be operated by Eurailscout - a subsidiary of Carillion Rail.

The unit is capable of measuring such parameters as rail head profile (top and side), track geometry (gauge, top, alignment, cant and twist) and OHLE condition (height and stagger) the latter via an instrumented Brecknell Willis highspeed pantograph. For more information about the machine look here.

The on board systems can provide location using GPS and the video systems can record track condition at high speed to identify rail surface flaws, missing clips, fishplates or bolts etc

Serco Railtest carried out all the statutory acceptance tests on the machine which is basically a self-propelled diesel multiple unit and is capable of 100 mile/h.

Here are a few pictures of the machine under test.

Click on the image for the bigger picture - Photos are the author's unless otherwise credited.

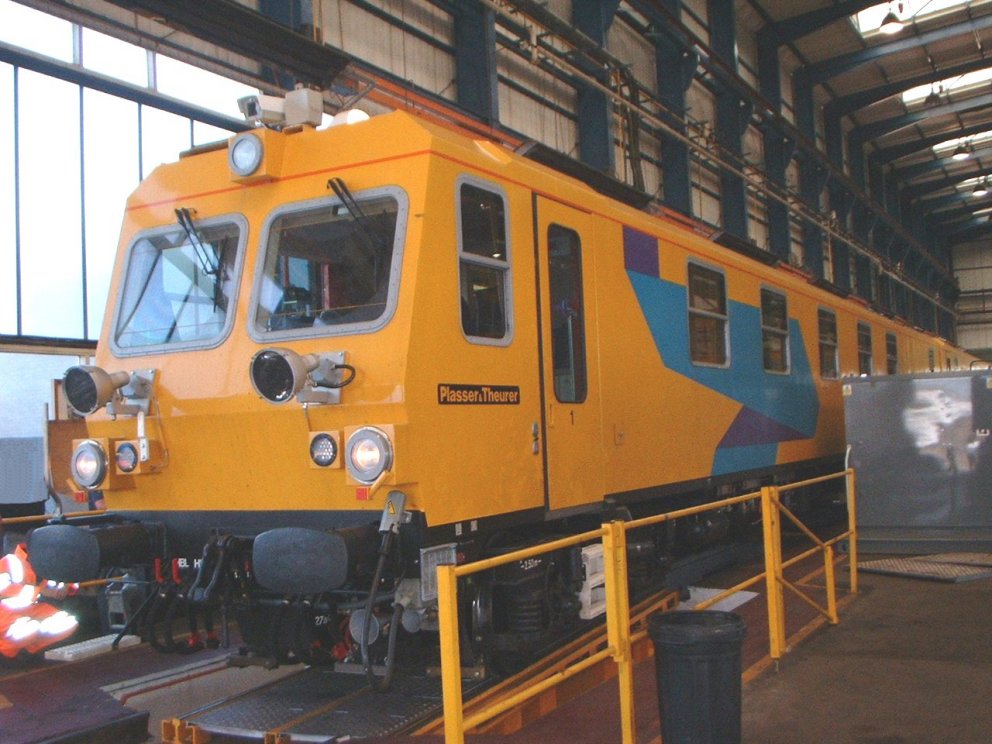

EDU workshop The machine is pictured in the workshop at Derby undergoing bogie rotational tests

Author's collection

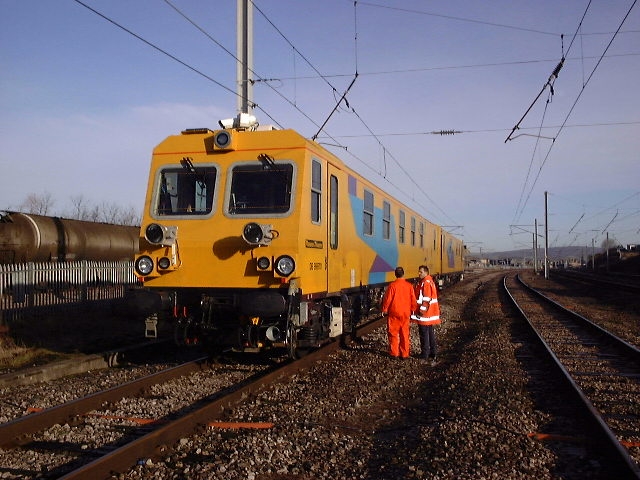

Carnforth The UFM160 unit stands in the Down side loop at Carnforth after a run from Derby in the summer of 2003

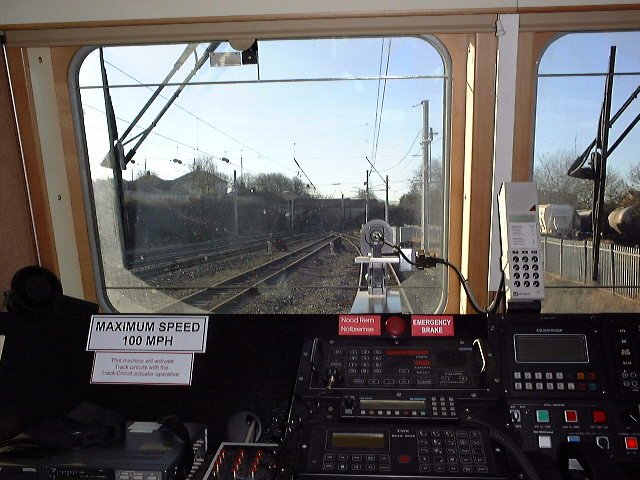

Cab Inside the cab showing the 100 mile/h maximum speed instruction

Author's collection

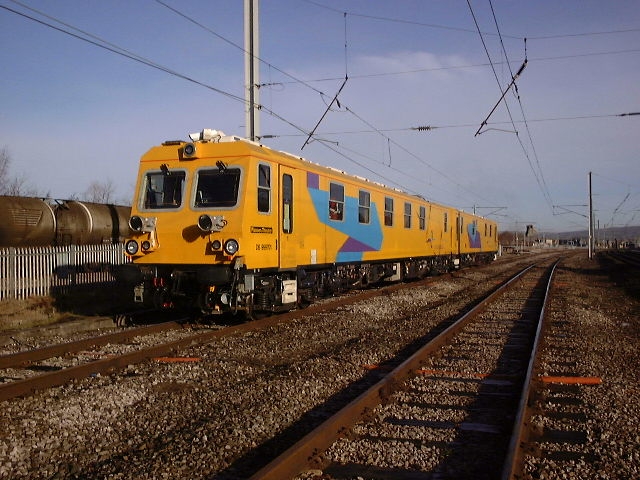

Carnforth Another picture of the impressive UFM160 at Carnforth

More pictures will be added
