Here are some scans from the 1981 Scottish Region APT-P Class 370 training manual. The drawings are by David Gibbons who used to illustrate the informative centre spreads of the staff newspaper Rail News and had several books of his drawings published. From memory these drawings convey an accurate impression of the vehicles and interiors.

All scans from author's collection

The cover of the part relating to Tilt systems

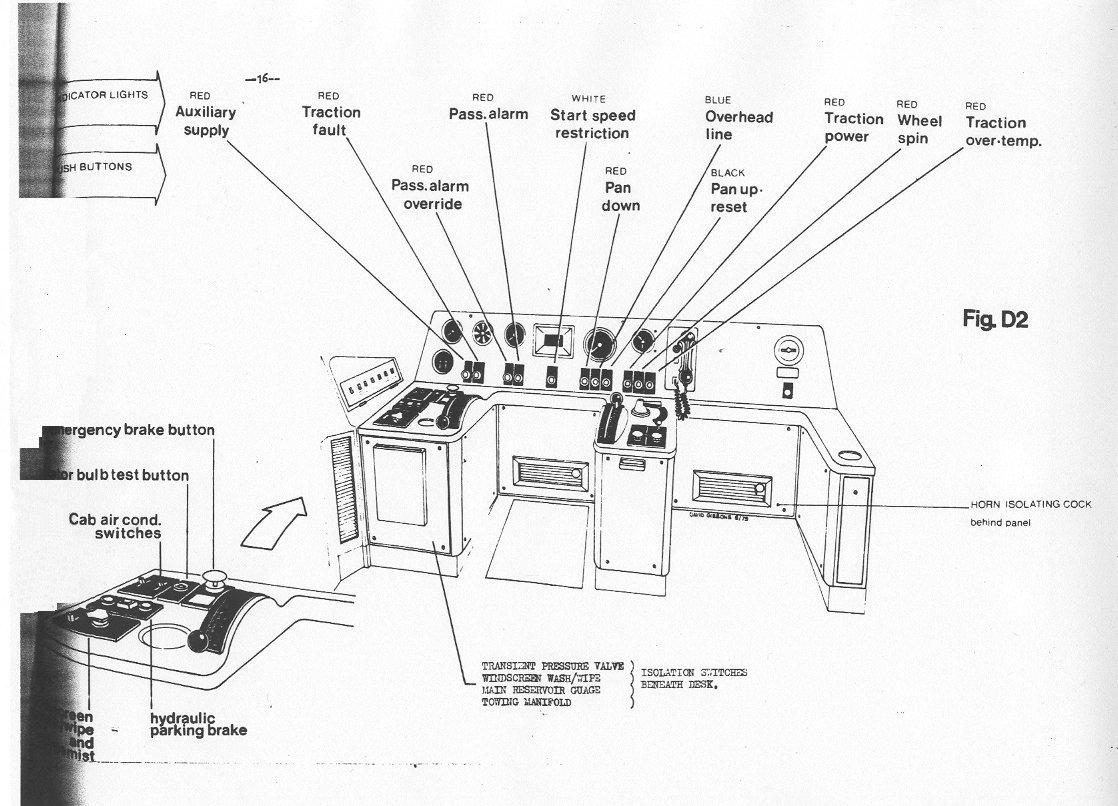

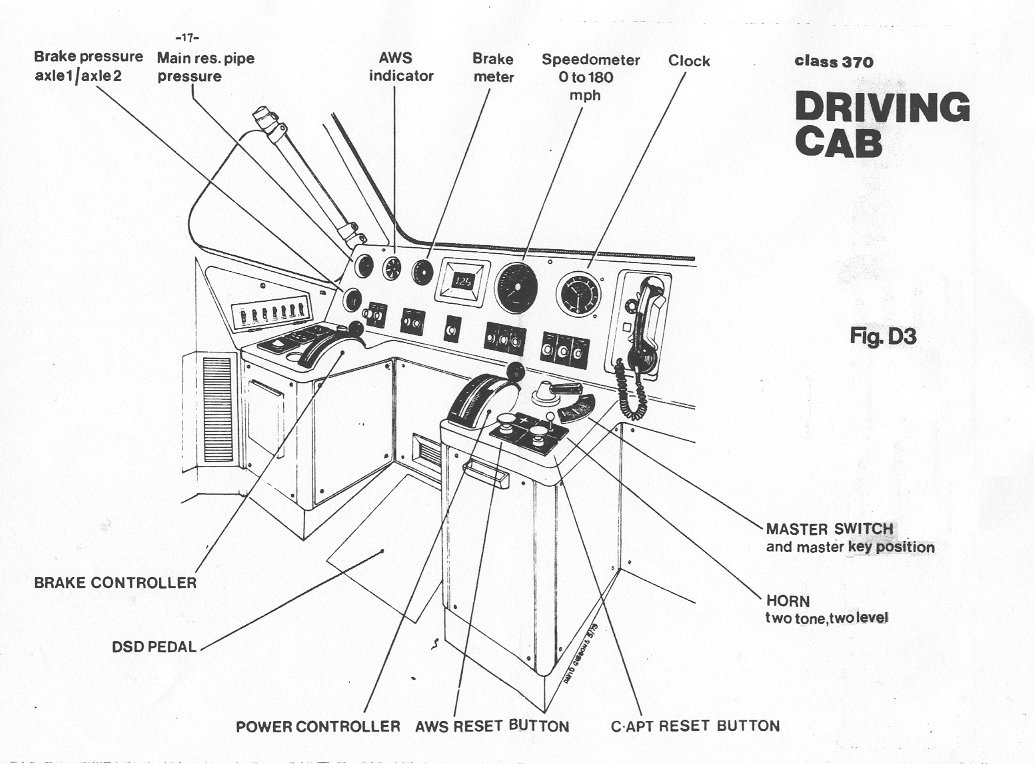

Inside the cab

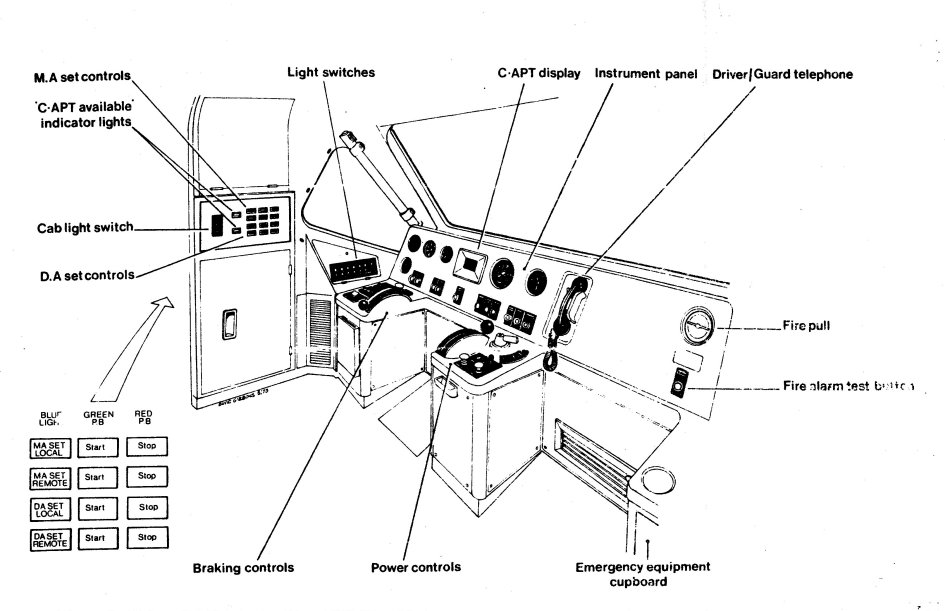

Another angle in the cab

and another

The power car

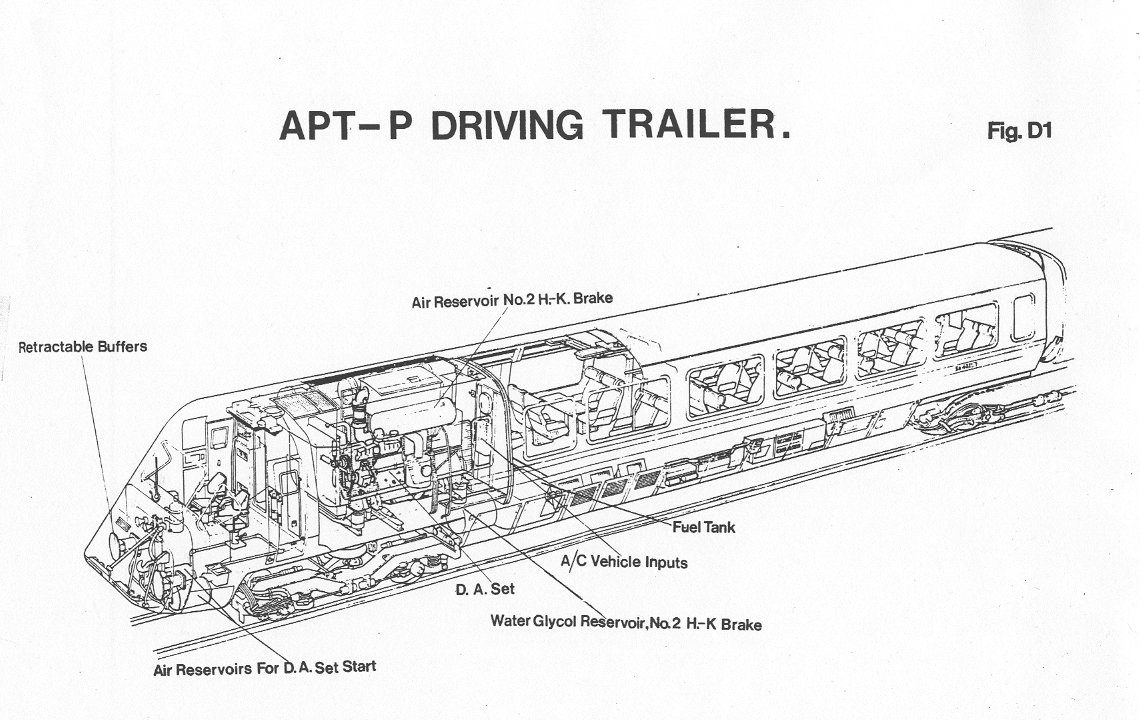

The driving trailer car

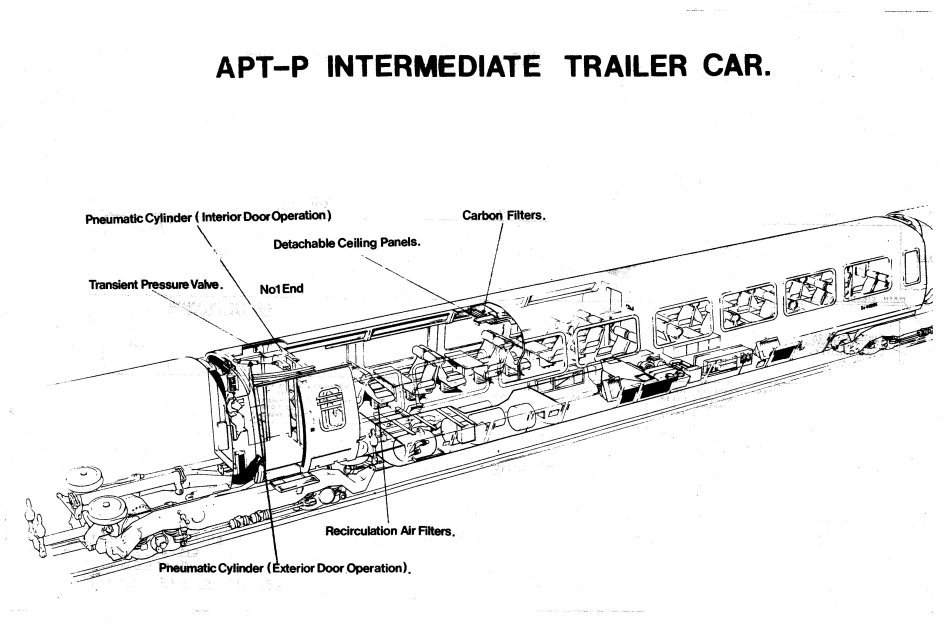

The intermediate trailer car

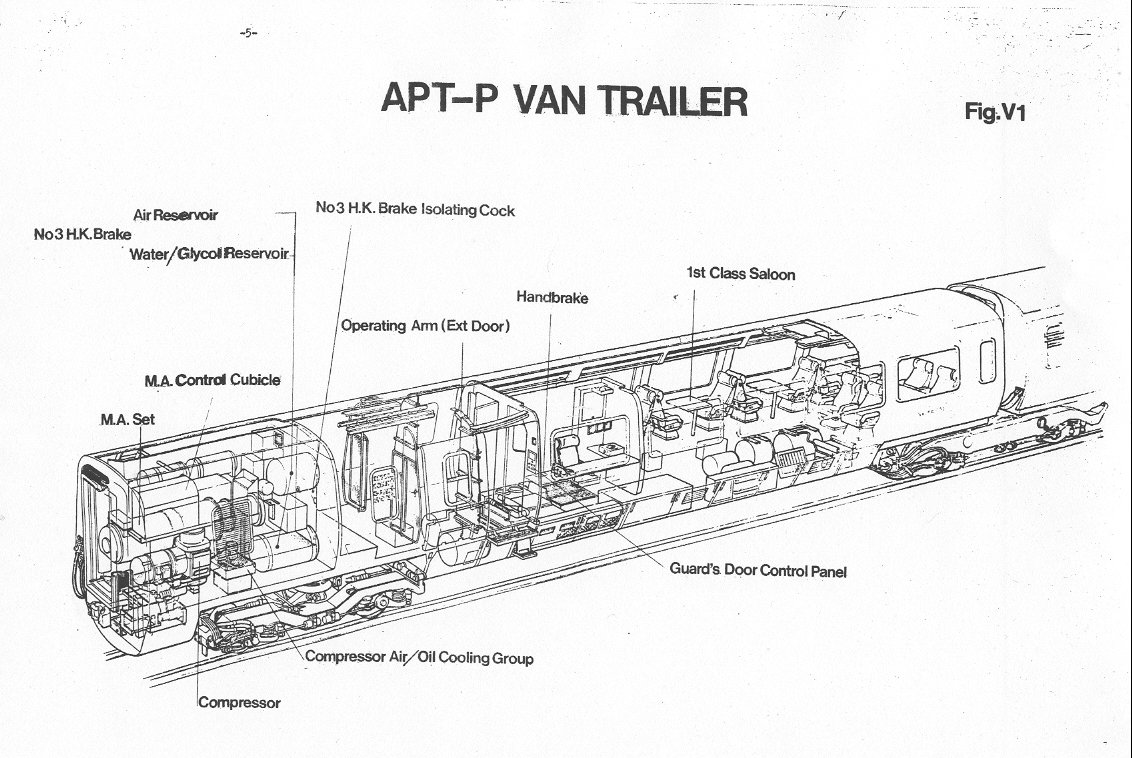

The van trailer car

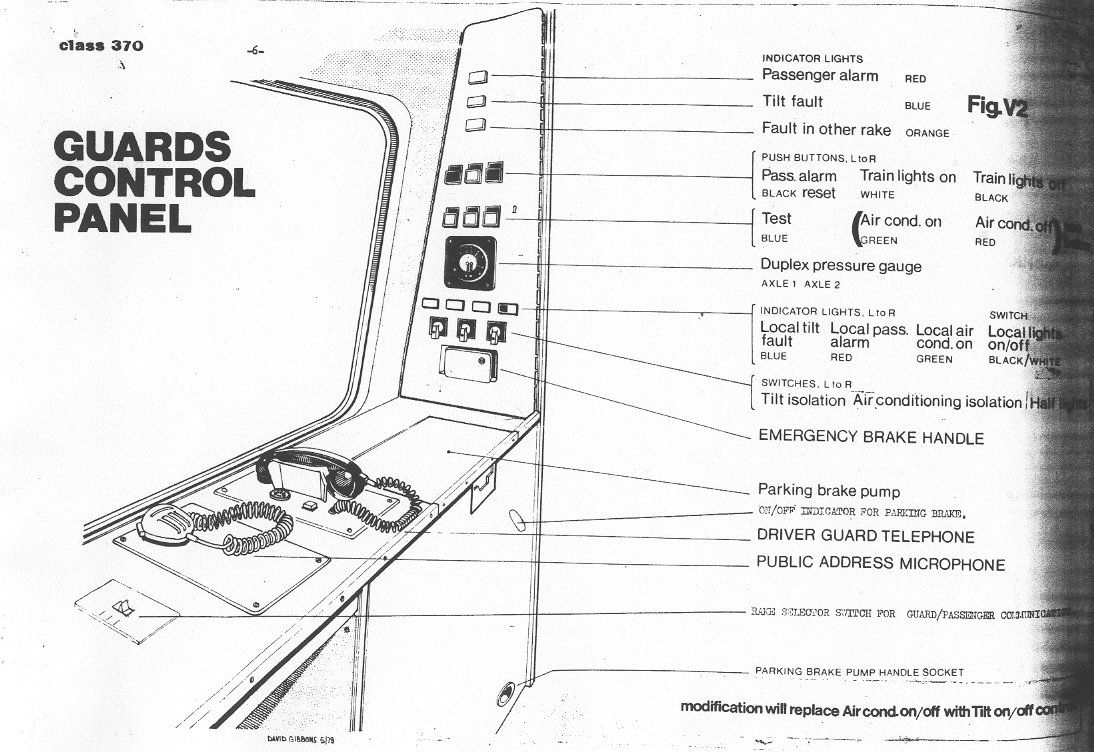

The guard's compartment

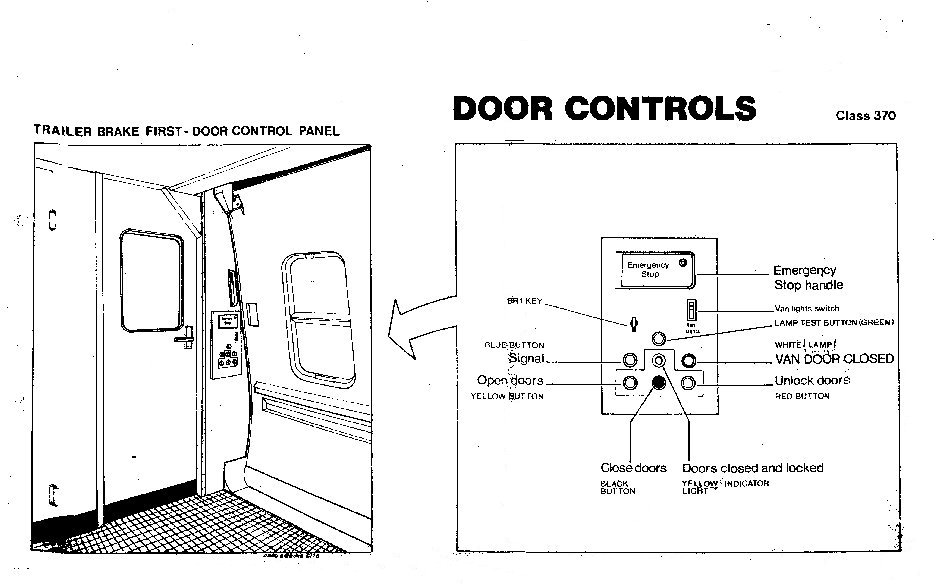

The door controls

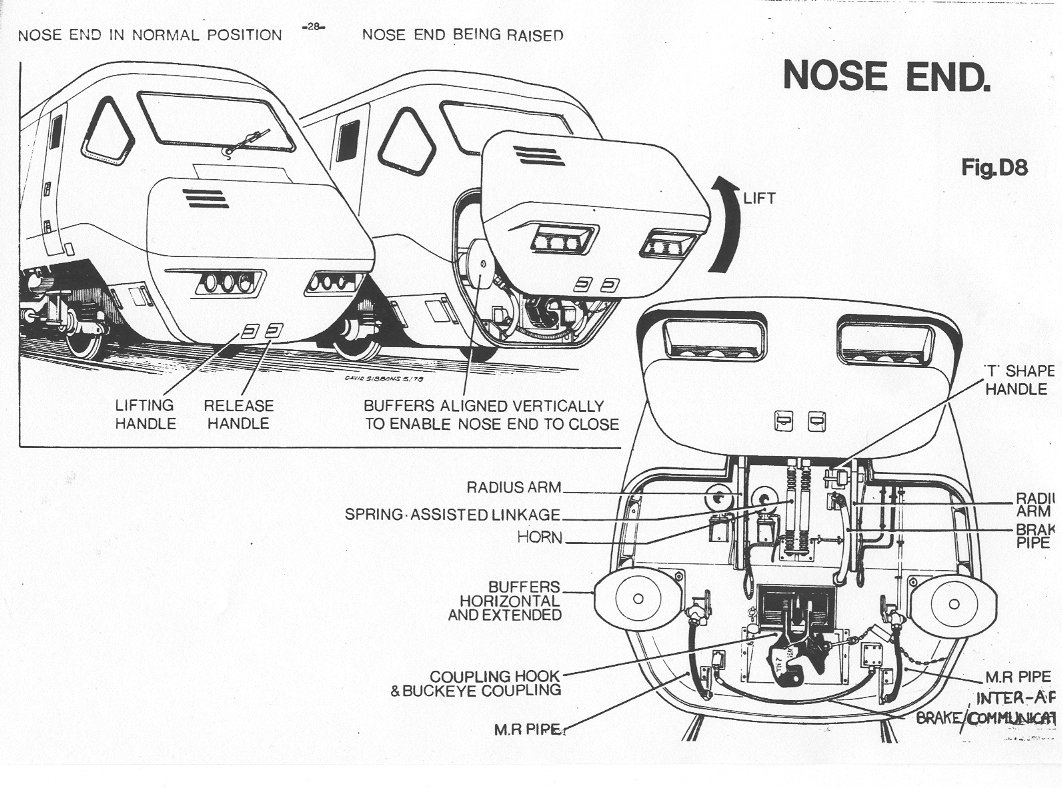

The nose ends showing the emergency coupling arrangements

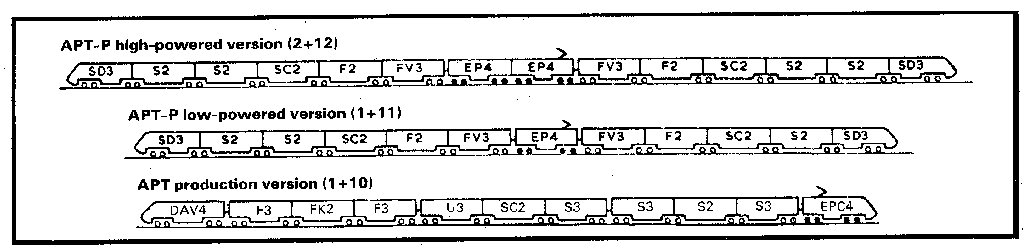

Here are the three formations in which P train might have run - if it had survived
Author's Collection
