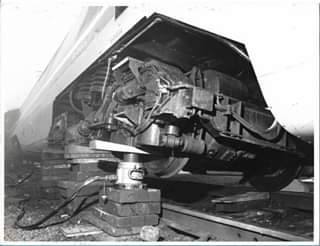

Max tilt angle sway tests at Toton with Power Car No5 showing the hydraulic jack and packing necessary to attain the correct angle
Emlyn Griffiths

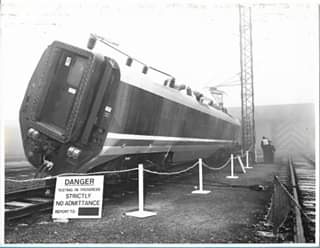

Power car at max tilt and sway
Emlyn Griffiths

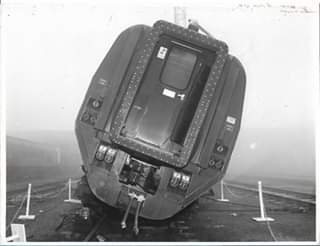

End view
Emlyn Griffiths
APT-P static testing
|
Amongst the many static tests, Delta Q torsional stiffness, bogie rotation etc were sway tests with the body at the maximum tilt angle of 9 degrees. These were conducted at Toton |
|
|
Max tilt angle sway tests at Toton with Power Car No5 showing the hydraulic jack and packing necessary to attain the correct angle Emlyn Griffiths |
|
Power car at max tilt and sway Emlyn Griffiths |
|
|
End view Emlyn Griffiths |
|
